X86 Security Architecture Embedded Linux Based Security Camera Super NVR

Product Description

Max. 16 Channel 8MP / 5MP / 4MP / 3MP / 1080P cameras connections and recording.

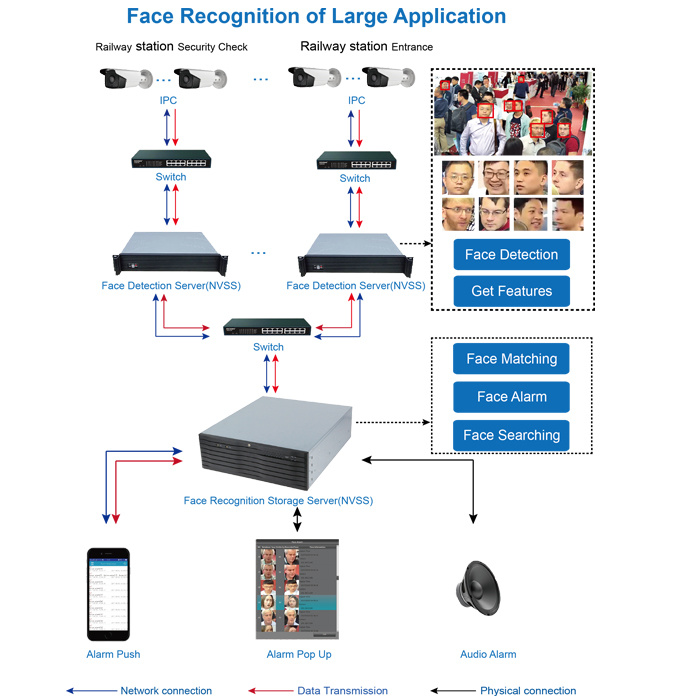

Support face recognition.
Support dual monitors, 2 HDMI or HDMI+VGA, 4K resolution
Instant playback, ICON search, 7 Intelligent analysis function.
36 channel POS integration.
Remote Desktop with TeamViewer.
ONVIF 2.3/2.6 conformance.
Support H.264 / H.265 hardware decode.
Support watchdog function
Support P2P function, Windows CMS, Mac/Android/iOS NVSS Client
Built-in access control management system

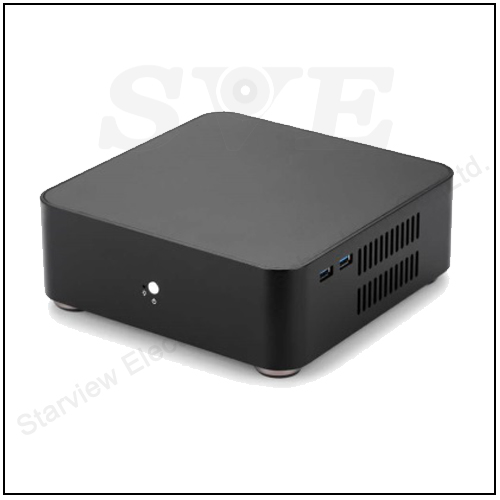

Model SNVSS8201E-ACS
Main Processor IntelCeleronJ4105 CPU
Operating System 64bit Linux OS
Memory 8GB
Video & Audio
Bandwidth Max Input bandwidth: 160Mbps, Max output bandwidth: 160Mbps
Recording 16ch@8M / 5M / 4M / 3M / 1080P / 720P / D1
Preview 4ch@8MP(4K) or 6ch@5M or 8ch@4M/3M or 12ch@1080P or 20ch@720P or 36ch@D1
Playback 4ch@8MP(4K) or 6ch@5M or 8ch@4M/3M or 12ch@1080P or 16ch@720P
Audio 1ch audio & 1ch Mic in, 1ch audio out
Face Recognition
Performance 60-80 pcs face per minute
Face capture IPC 2ch
Recording Mode Manual, Schedule(Continuous, Motion detection, Sensor Alarm), Stop
Alarm Recording Motion detection, External alarm
Backup Mode Network download / USB HDD / Mobile DVD
Video Output 2ch HDMI output, up to 4K
Multi-split Display Main monitor 1/4/6/9/13/16/20/25/33/36 split, sub monitor max 16 split.
Output Resolution Self adapted, supports 3840*21601920*1080 / 1600*1050 / 1280*1024 / 1024*768
Network Interface 1 RJ-45 ports(1000M)
Power Supply 12VDC, 5A
Hard Disk One 3.5 inch SATA HDD, max. 6TB
USB 5 USB ports(1 side USB 3.0; 2 rear USB 2.0; 2 rear USB 3.0)
Power Max. 60W (Include HDD)
WorkEnvironment Temperature: 0˚C~60˚C; Humidity: 10%~80% ( non-condensation)
Dimension 225mm×200mm×60mm (W×D×H); mini case
Weight 2Kg
