HD Audio and Video All-in-One Device

Omnidirectional Microphone Deployment

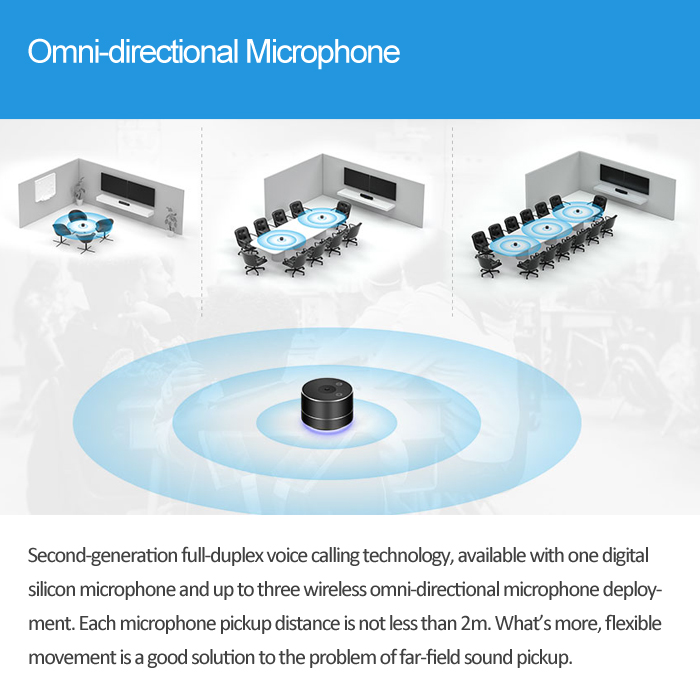

Second-generation full-duplex voice calling technology, available with one digital silicon microphone and up to three wireless omni-directional microphone deployment. Each microphone pickup distance is not less than 2m. What's more, flexible movement is a good solution to the problem of far-field sound pickup.

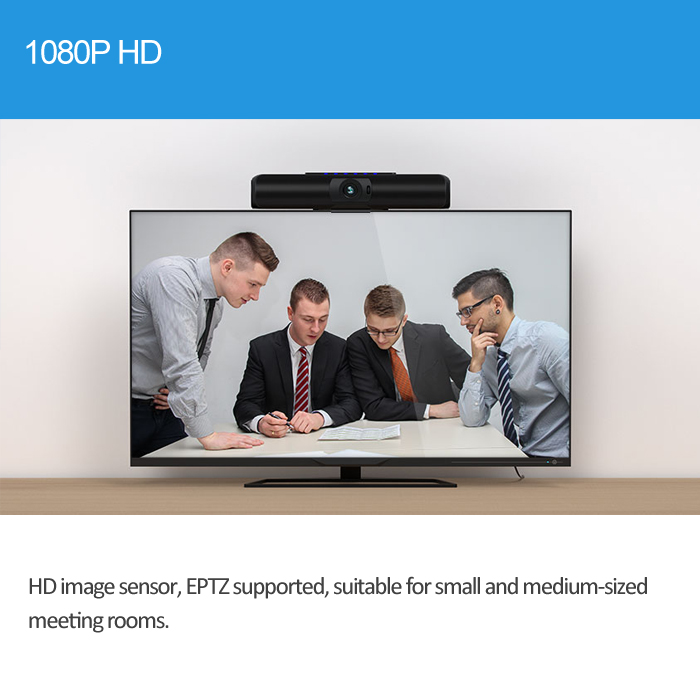

HD image sensor, EPTZ supported, suitable for small and medium-sized meeting rooms.

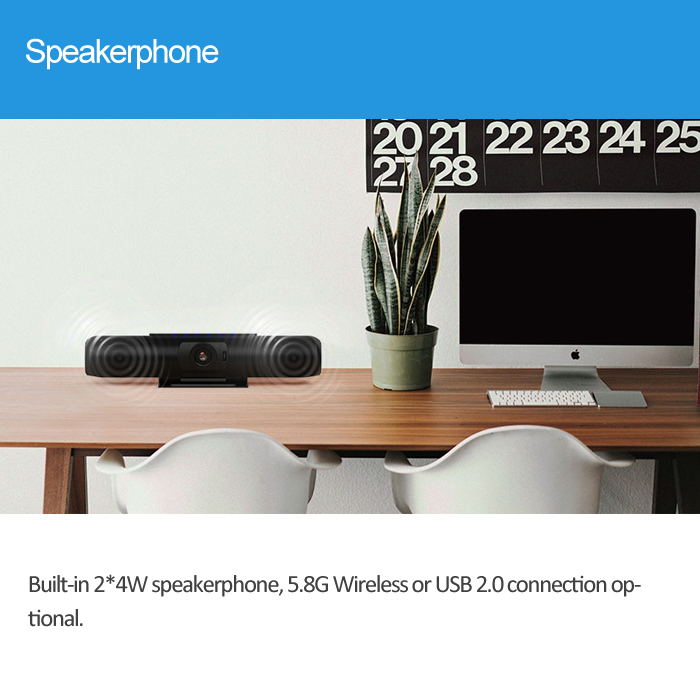

Built-in 2*4W speakerphone, 5.8G Wireless or USB 2.0 connection optional.

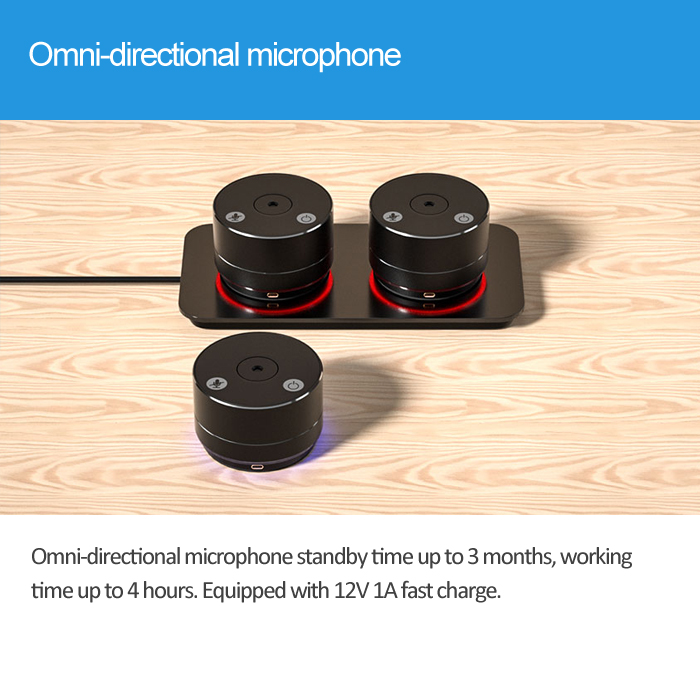

Omni-directional microphone standby time up to 3 months, working time up to 4 hours. Equipped with 12V 1A fast charge.

Product Description
  • HD image sensor, EPTZ supported, suitable for small and medium-sized meeting rooms.
  • Built-in 2*4W speakerphone, 5.8G Wireless or USB 2.0 connection optional.
  • Using world-class echo cancellation technology, noise cancellation technology, howling suppression technology, and dynamic noise suppression
  • technology, you can clearly output meeting content although in a noisy environment.
  • Omni-directional microphone standby time up to 3 months, working time up to 4 hours. Equipped with 12V 1A fast charge.
  • The camera part uses USB2.0 B type interface, USB Plug & Play, driver free. It's easy to use by abandoning traditional complex connection method.

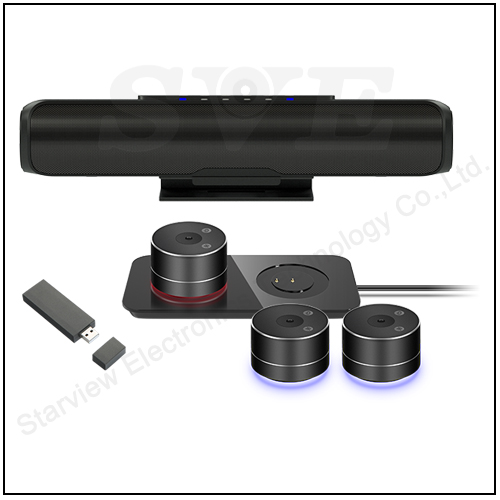

Audio video All-in-one conference camera
Video
Image sensor
Sensor 1/2.8″ SONY CMOS
EffectivePixel 2.1 Megapixel
Minimum Illumination 0.5Lux @ F1.8, AGC ON
White Balance Auto
Gain control Auto
Backlight Compensation Not support
SNR >50db
Lens
Focus 3.24
Iris Fixed
Zoom Fixed Lens(Support EPTZ,2x digital zoom)
Horizontal view angle 87°
Video output Interface USB 2.0
Video output Format 1080P30, 720P30, 800x600, 640x480, 640x360 etc YUY2, MJPEG, H.264

Built-in Audio
Built-inDigital silicon Microphone
Type Digital silicon Microphone
Sensitivity Built-in Microphone: -22dBFS
SNR 60dB
Frequency response 100Hz - 16kHz
Echo Cancellation world-class Echo cancellation technology, echo cancellation time up to 256ms
Noise Cancellation >12dB
Sampling frequency Record:16kHz / Playback:48kHz
Voice pick up range 3M
Transmission Model Wired, USB2.0(Between all-in-one device and PC)
Wireless,2.4G(Between all-in-one device and Microphone)
Speaker power Double Channels4W*2
All-in-one Device Power 9W MAX
Control Mode Touch button control /remote control
Button function ON/OFF( Battery Check),Volume+,volume-,speaker Mute,Microphone Mute,Scene switch
Remote function Audio:Volume+,Volume-,microphone mute,speaker Mute,ON/OFF
Video:ZOOM+,ZOOM-,up/down/left/right movement,OSD Menu
status Display Two-color LED indicator
Power adapter DC12V±0.2V,1A
working temperature -10ºC ~ 40ºC
environment humidity 0-95% RH
length*width*height (L) 400 mm x (W) 75mm x (H) 62 mm
Weight 950g

Expansion Microphone (1- 3 expansion Microphone(s))
Type Digital silicon Microphone
Sensitivity -26dBFS @1kHz 1Pa
SN 59dB
Frequency response 100Hz - 16kHz
Sampling frequency Record:48kHz
Voice pick up range 3M
Wireless Transmission Model 2.4G ISM
Wireless transmit power 2.4G: +5dBm
Microphone power 0.2W MAX
Charge Jack USB typc /Charging board contact charging
Control Mode Touch button control
Button function ON/OFF, Microphone Mute
status Display Two-color LED indicator
Power adapter Charging boardDC5V±0.2V,2A
Battery 800MAH
Standby time 6 month
work time >8hours
working temperature -10 - 40ºC
environment humidity 0-95% RH
length*width*height φ70x49mm
Weight 300g

Name Charging Board
Input voltage/current 5V/2A
Maximum number of Microphone get charged 2 pcs
Single output current 600mA
Dimension 200x100x16(mm)
weight 170g
Interface USB-TYPE-C
