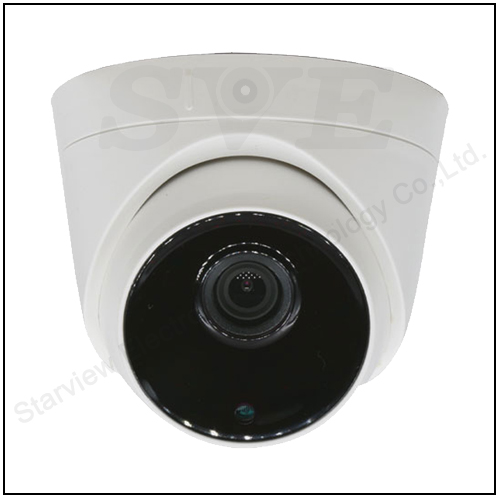

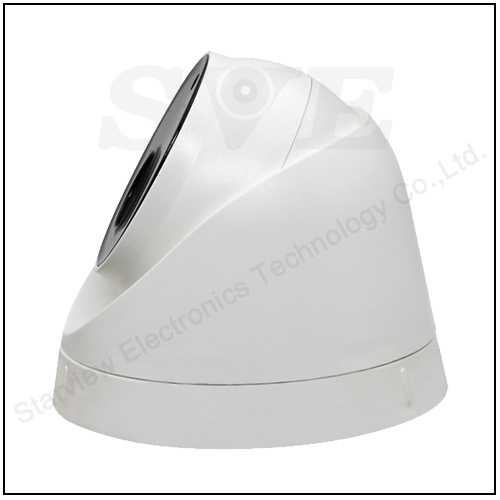

4" Plastic Humanoid Detection Defog Ai WDR Poe Onvif Dome IP Camera
Features:
4"Plastic Dome IP Camera
IR LED: 42μX2pcs, IR Range: 25M
Obscured glass, hidden IR Led
Video Output: 1 x RJ45 port
Support Onvif, Support Gmail/GOOGLE/QQ/EMAIL
PNP(Plug and Play), support smart phone & tablets
OSD, Motion Detection, Remote View and Control, IR-Cut
Working Temperature: -10ºC~ +60ºC
24PCS Per Carton
Size: 105mm × 80mm
Weight: 420g
Specifications
4"Plastic Dome IP Camera
IR LED: 42μX2pcs, IR Range: 25M
Obscured glass, hidden IR Led
Video Output: 1 x RJ45 port
Support Onvif, Support Gmail/GOOGLE/QQ/EMAIL
PNP(Plug and Play), support smart phone & tablets
OSD, Motion Detection, Remote View and Control, IR-Cut
Working Temperature: -10ºC~ +60ºC
24PCS Per Carton
Size: 105mm × 80mm
Weight: 420g
Specifications
| Model ID | SVN-WILB20M | SVN-WILB20L | SVN-WILB20C | SVN-WILB20X | SVN-WILB20T | SVN-WILB30C | SVN-WILB30X | SVN-WILB30T | SVN-WILB40P | SVN-WILB50X |
| Description | 4'' Plastic Dome IP Camera,Obscured glass, hidden IR Led,IR LED: 42μX2pcs, IR Range: 25M | |||||||||
| TV System | NTSC / PAL | |||||||||
| Video Output | 1 x RJ45 port | |||||||||
| Chipset Solution |
1/2.7" 2.0 MP CMOS SC2235P + XM530 |
1/2.8" 2.0 MP CMOS SONY IMX307 + XM530 |
1/3" 2.0 MP CMOS SC2235 + HI3516EV100 |
1/3" 2.0 MP CMOS SONY IMX323 + HI3516EV100 |
1/2.5" 2.0 MP CMOS SONY IMX307 + HI3516EV100 |
1/2.5" 3.0 MP CMOS SC2235 + Hi3516CV300 |
1/2.5" 3.0 MP CMOS SONY IMX323 + Hi3516CV300 |
1/2.5" 3.0 MP CMOS SONY IMX291 + Hi3516CV300 |
1/2.7" 4.0 MP CMOS SC5239 + XM530 |
1/3" 5.0 MP CMOS SONY IMX335 + XM550 |
| Resolution |
1080P@ 25fps(PAL), 30fps(NTSC) |
1080P@ 25fps(PAL), 30fps(NTSC) |
1080P@ 25fps(PAL), 30fps(NTSC) |
1080P@ 25fps(PAL), 30fps(NTSC) |
1080P@ 25fps(PAL), 30fps(NTSC) |
1080P@ 25fps(PAL), 30fps(NTSC) |
3MP@ 25fps(PAL), 30fps(NTSC) |
3MP@ 25fps(PAL), 30fps(NTSC) |
4MP@ 25fps(PAL), 30fps(NTSC) |
5MP@ 25fps(PAL), 30fps(NTSC) |
| Effective Pixels | 1920(H)×1080(V) | 1920(H)×1080(V) | 1920(H)×1080(V) | 1920(H)×1080(V) | 1920(H)×1080(V) | 2048(H)×1536(V) | 2048(H)×1536(V) | 2048(H)×1536(V) | 2688(H)×1520(V) | 2560(H)×1920(V) |
| Minimum Illumination | 0.001Lux | |||||||||
| Lens | 3.6mm(5M Pixels) / 2.8mm (Optional) | |||||||||
| Sync,System | Internal Synchronization | |||||||||
| Network | 1 RJ45 Ethernet interface, 10/100M adaptation | |||||||||
| Video Compression | H.265 compression | |||||||||
| Protocol | Support Gmail/GOOGLE/QQ/EMAIL | |||||||||
| Onvif | Support Onvif | |||||||||
| S/N Ratio | ≥ 58dB | |||||||||
| POE | Optional(External PoE ) | |||||||||
| WIFI | / | |||||||||
| AI WDR | YES | / | / | / | / | / | / | YES | ||
| AI Defog | YES | / | / | / | / | / | / | YES | ||
| AI humanoid Detection | YES | / | / | / | / | / | / | YES | ||
| Power Source | DC 12V/2A | |||||||||
| Consumption | <5W | |||||||||
| Operating Enviroment | -10ºC~ +60ºC / 10% ~ 95%RH | |||||||||
| Working Humidity | ≤90% | |||||||||
| Size(mm) | 105mm × 80mm | |||||||||
| Weight(kg) | 0.42 kg | |||||||||
