NTSC / PAL 3D-Nr Noise Reduction BNC Dwdr OSD Utc Hidden IR LED IP66 Waterproof IR Ahd/Tvi/Cvi Security Bullet Camera

Features:

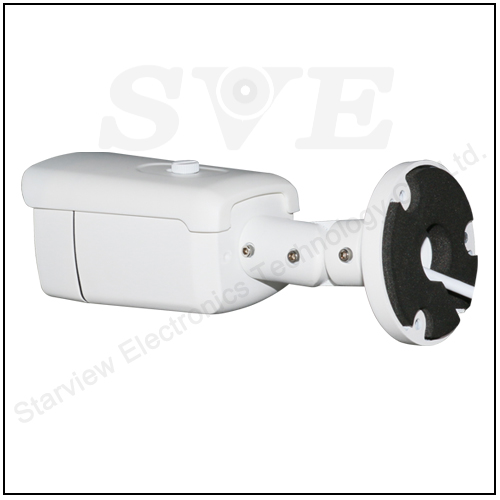

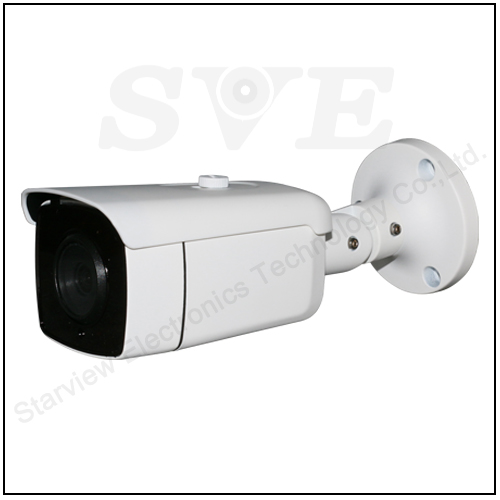

Waterproof IR Bullet Camera
IR LED: 14μX24pcs, IR Range: 30M
Water Resistance: IP66
Obscured glass, hidden IR Led
3-Axis Cable Built-in Bracket
60PCS Per Carton
Size: 172mm x 63mm x 73mm
Weight: 480g

Specifications
Model ID SV-WEB20FHD SV-WEB20ZHD SV-WEB20THD SV-WEB40KHD SV-WEB40VHD SV-WEB50KHD SV-WEB50SHD SV-WEB80VHD
Description Waterproof IR Bullet Camera,Obscured glass, hidden IR Led,IR LED: 14μX24pcs, IR Range: 30M
TV System NTSC / PAL
Video Out BNC 4 in 1(AHD, TVI, CVI, CVBS )
Chipset Solution 1/2.7" 1080P 2MP
CMOS Sensor
F37 + XM330
 Low illum
1/2.7" 1080P 2MP
CMOS Sensor
F33 + FH8536E
 Low illum
1/2.8" 1080P 2MP
STARVIS
CMOS Sensor
SONY IMX307 +
NVP2441H
 Low illum
1/2.7" 4MP
CMOS Sensor
Silicon K02 +
FH8538M
 Low illum
 1/3" 4MP CMOS
Sensor
OV4689 + FH8538M
 Low illum
 1/2.7" 5MP CMOS
Sensor
Silicon K03 +
FH8538M
 Low illum
1/2.9" 5MP CMOS
Sensor
SONY IMX335 +
FH8558M
 Low illum
 1/2.3" 4K(8MP)
CMOS Sensor
OV12895 +
NVP2481
 Low illum
Resolution 1080P@
25fps(PAL),
30fps(NTSC)
1080P@
25fps(PAL),
30fps(NTSC)
1080P@
25fps(PAL),
30fps(NTSC)
4MP @
25fps(PAL),
30fps(NTSC)
4MP @
25fps(PAL),
30fps(NTSC)
5MP @
25fps(PAL),
30fps(NTSC)
5MP @
25fps(PAL),
30fps(NTSC)
4K/8MP @
15fps(PAL),
15fps(NTSC)
Effective Pixels 1920(H)×1080(V) 1920(H)×1080(V) 1920(H)×1080(V) 2560(H)×1440(V) 2560(H)×1440(V) 2592(H)×1944(V) 2592(H)×1944(V) 3840(H)×2160(V)
Minimum Illumination 0.001Lux
Lens 2.8/6/8mm Optional
3.6mm Board Lens
Sync,System Internal Synchronization
Scanning System 2:1 Interface
Shutter Speed 1/60~1/100,000sec (N), 1/50~1/100,000sec (P)
S/N Ratio ≥ 58dB
DWDR YES
OSD NO Optional YES
UTC YES
3D-NR YES
Power Source DC12V ±10%
Consumption <5W
Operating Enviroment -20ºC~60ºC / 10% ~ 95%RH
Working Humidity ≤90%
Size(mm) 172mm x 63mm x 73mm
Weight(kg) 0.48 Kg
