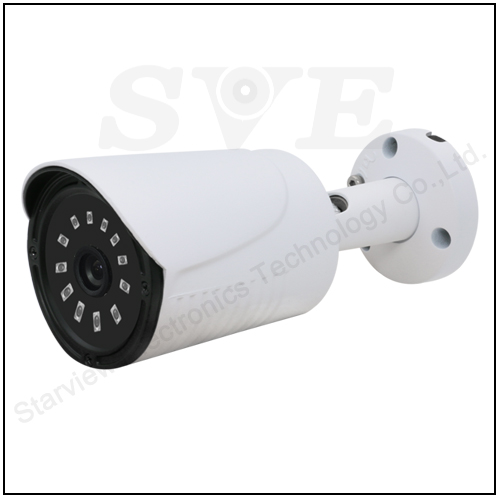

NTSC / PAL Dwdr OSD Utc BNC IP66 3D-Nr Noise Reduction Waterproof IR Ahd/Tvi/Cvi Security Bullet Camera

Features:
Waterproof IR Bullet Camera
IR LED: 14μX12pcs, IR Range: 20M
Water Resistance: IP66
3-Axis Cable Built-in Bracket
60PCS Per Carton
Size: 175mm x 69mm x 55mm
Weight: 500g

Specifications
Model ID SV-WGB20FHD SV-WGB20ZHD SV-WGB20THD SV-WGB40KHD SV-WGB40VHD SV-WGB50KHD SV-WGB50SHD SV-WGB80VHD
Description Waterproof  IR Bullet Camera, IR LED: 14μX12pcs, IR Range: 20M
TV System NTSC / PAL
Video Out BNC 3 in 1
(AHD, TVI, CVI)
BNC 4 in 1(AHD, TVI, CVI, CVBS Switch by OSD)
Chipset Solution 1/2.7" 1080P 2MP
CMOS Sensor
Low illum
SC2235 + XM330
1/2.7"  1080P
2MP CMOS Sensor
Low illum
F33 + FH8536E
1/2.8"
1080P(2.13MP)
STARVIS CMOS
Sensor, Low
illum, SONY
IMX307 + NVP2441H
1/2.7"  4MP
CMOS Sensor
 Low illum
Silicon
K02 + FH8538M
1/3"  4MP
CMOS Sensor
 Low illum
OV4689 +
FH8538M
1/2.7"  5MP
CMOS Sensor,
Low illum
Silicon
K03 + FH8538M
1/2.9"  5MP
CMOS Sensor
 Low illum,
SONY
 IMX335 +
FH8558M
1/2.3" 4K(8MP)
CMOS Sensor
 Low illum,
OV12895 + NVP2481
Resolution 1080P@
25fps(PAL),
30fps(NTSC)
1080P @
25fps(PAL),
30fps(NTSC)
1080P @
25fps(PAL),
30fps(NTSC)
4MP @
 25fps(PAL),
30fps(NTSC)
4MP @
25fps(PAL),
30fps(NTSC)
5MP @
25fps(PAL),
30fps(NTSC)
5MP @
25fps(PAL),
30fps(NTSC)
4K/8MP @
15fps(PAL),
15fps(NTSC)
Effective Pixels 1920(H)×1080(V) 1920(H)×1080(V) 1920(H)×1080(V) 2560(H)×1440(V) 2560(H)×1440(V) 2592(H)×1944(V) 2592(H)×1944(V) 3840(H)×2160(V)
Minimum Illumination 0.001Lux
Lens 3.6mm Board Lens,2.8/6/8mm (Optional) F1. 0 4mm 4K Lens
Sync,System Internal Synchronization
Scanning System 2:1 Interface
Shutter Speed 1/60~1/100,000sec (N), 1/50~1/100,000sec (P)
S/N Ratio ≥ 58dB
DWDR YES
OSD NO Yes
UTC YES
Noise Reduction 3D-NR
Power Source DC12V ±10%
Consumption <5W
Operating Enviroment -20ºC~60ºC / 10% ~ 95%RH
Working Humidity ≤90%
Size(mm) 175mm x 69mm x 55mm
Weight(kg) 0.5 kg
