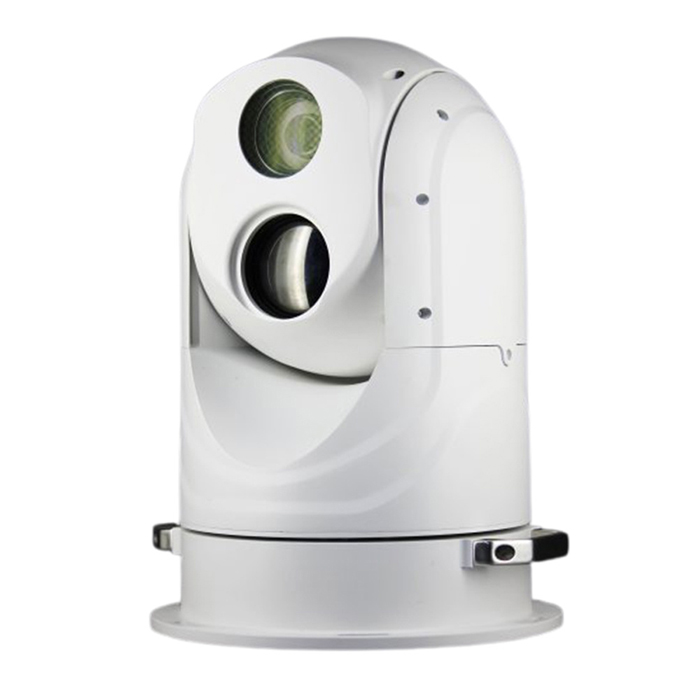

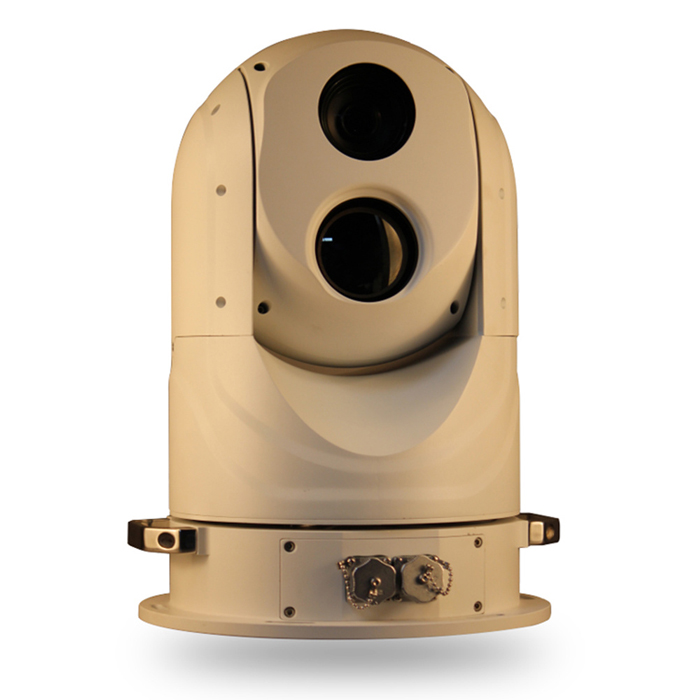

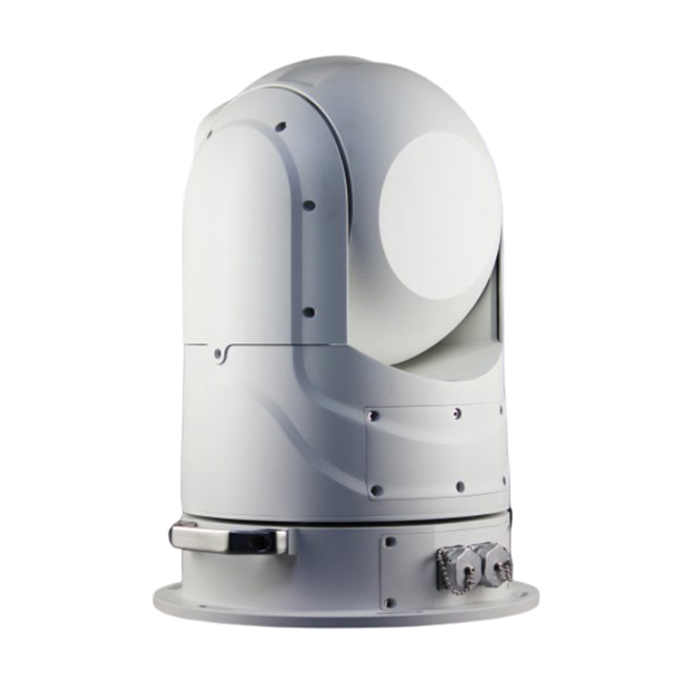

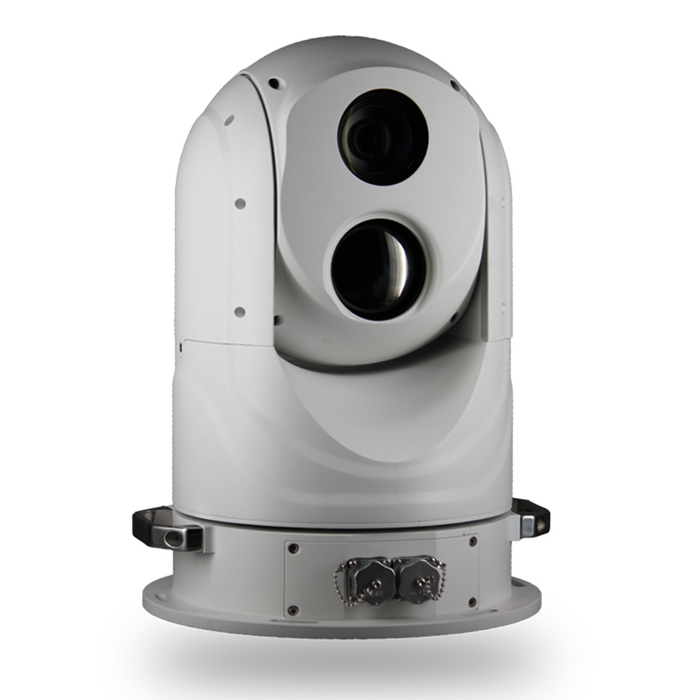

52X Opticol Zoom 4MP 1000m Laser IP67 Marine PTZ Camera with Gyro Stabilisation

Key Features

  1. Starlight optical Camera with 1/1.8 Cmos sensor, 317mm lens, 52x Zoom;
  2. Optional laser illuminator up to 1000meter;
  3. 360° omnidirectional high-speed PTZ; ±90° Tilt range;
  4. Built-in heater/fan, allows the withstand the harshest climates;
  5. Gyro Stabilisation, 2 axis;
  6. Marine rated design;
  7. Onvif Support;
Coastal Surveillance and Reconnaissance, Harbor and Offshore Platform Security, Maritime Traffic monitoring, Oil Spill and Water Pollution Detection, Search and Rescue, Coast Guard and Patrol Boats, Critical Infrastructure Protection.

Product Parameters

Model No. SVN-452X77L1
Image Sensor 1/1.8" Progressive Scan CMOS, 4MP
Effective pixel 2560(H) x 1440(V), 4 Megapixels;
Min. Illumination Color: 0.0005Lux@F1.4; B/W:0.0001Lux@F1.4
Focal Length 6.1mm~317mm
Optical Zoom Optical Zoom 52x
Aperture Range F1.4-F4.7
Field of View 61.8-1.6°(Wide-Tele); 36.1-0.9°(Wide-Tele)
Working Distance 100-2000mm(Wide-Tele)
Zoom Speed Approx. 6 s (optical lens, wide-tele)
Pan Range 360° (endless)
Pan Speed 0.05°/s ~ 80°/s
Tilt Range -90° ~ +90° (auto reverse)
Tilt Speed 0.1° ~ 20°/s
Preset 255
Patrol 6 patrols, up to 18 presets per patrol
Pattern 4 , with the total recording time not less than 10 mins
Power loss recovery Support
Laser distance 1000m
Laser intensity Automatically adjusted, depending on the zoom ratio
Compression H.265/H.264 / MJPEG
Streaming 3 Streams
BLC BLC / HLC / WDR(120dB)
White Balance Auto,ATW,Indoor,Outdoor,Manual
Gain Control Auto / Manual
Ethernet RJ-45 (10/100Base-T)
Interoperability ONVIF, PSIA, CGI
Web Viewer IE10/Google/Firefox/Safari...
Power AC 24V, 72W(Max)
Working temperature -40ºC~60ºC
Humidity 90% or less
Protection level Ip67, TVS 4000V Lightning protection, surge protection
Mount option Wall Mounting, Ceiling Mounting
Weight 9.5 kg
