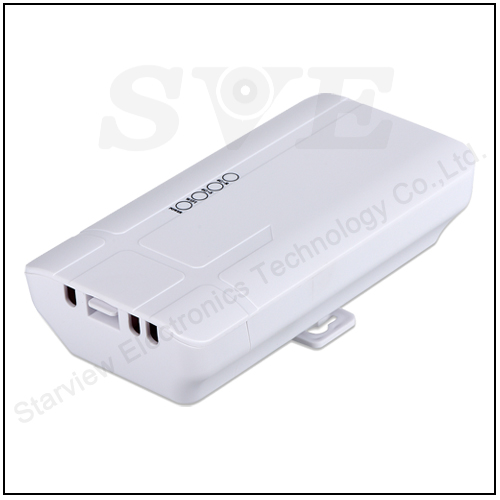

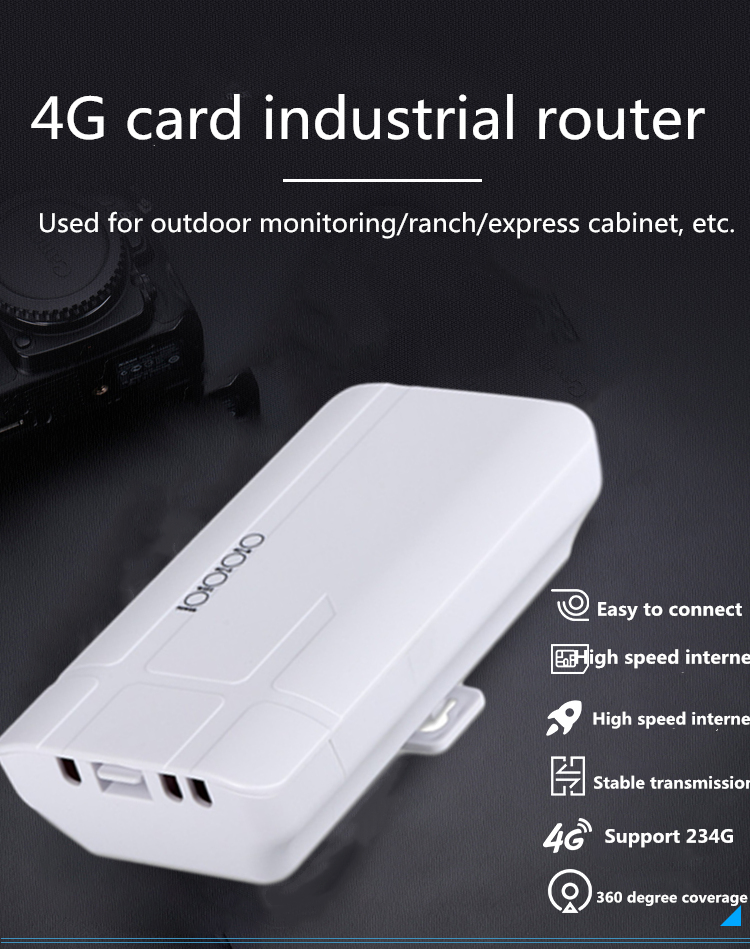

4G Network WiFi Industrial Grade Qualcomm Route



4G industrial grade Qualcomm Route
  • 4G industrial grade Qualcomm Route
  • 4G Full Netcom
  • 300M bandwidth, smooth wireless
  • External omnidirectional 4G antenna, better signal and more stable Internet access
  • Support for CAT4
  • Card plug-in in-play, convenient and fast
  •
Product Description
In the networked world of the Internet, the demand for intelligent communication will only become stronger and stronger, especially in the field of intelligent industrial control.SR-580E4G Industrial Router is the new 4G wireless VPN router for industry. This facility provides fast internet access with an explosive growth of a 4G cellular data network and a variety of wored high-speed broadband access services. With its security, stability and intelligence, thousands of devices are easily connected to provide high-speed data transmission and communication for the real sense of eauipment ifformatication.

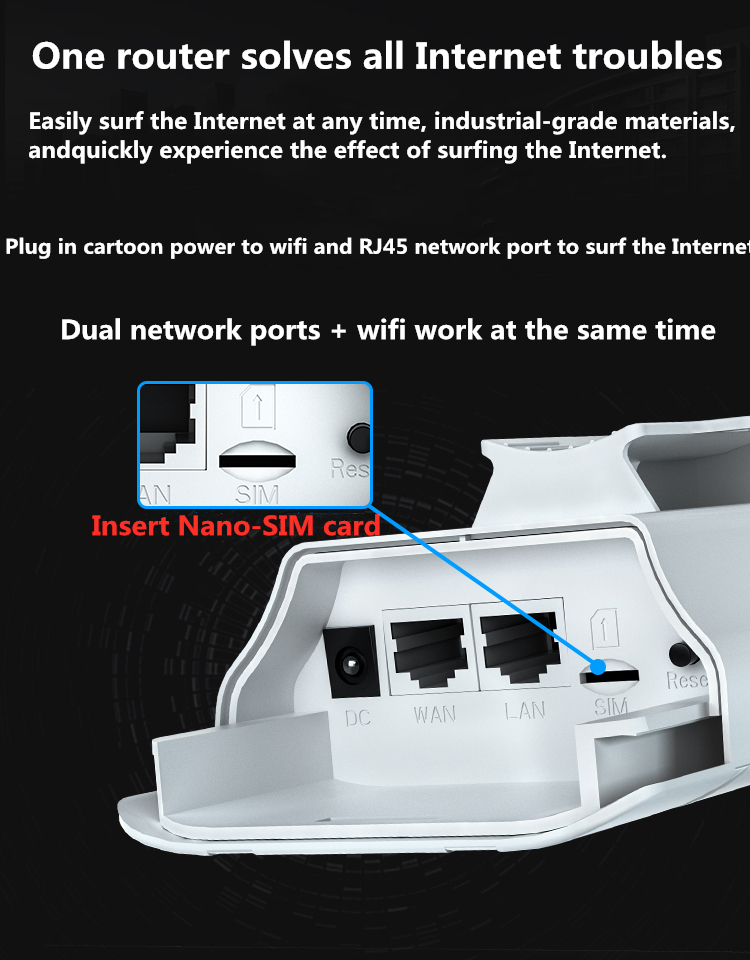

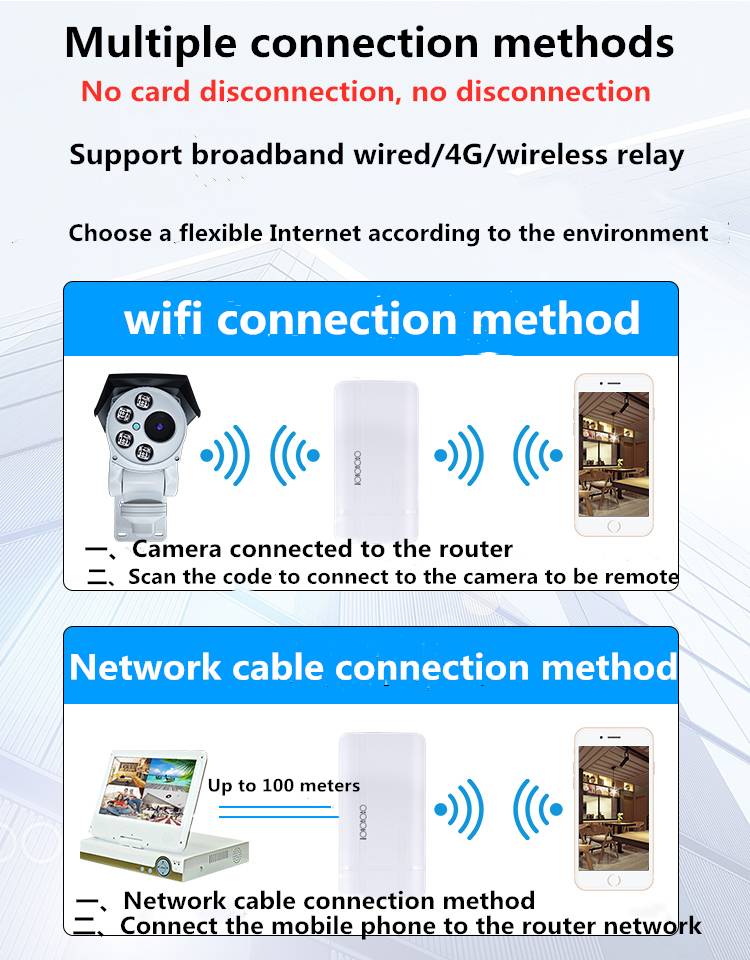

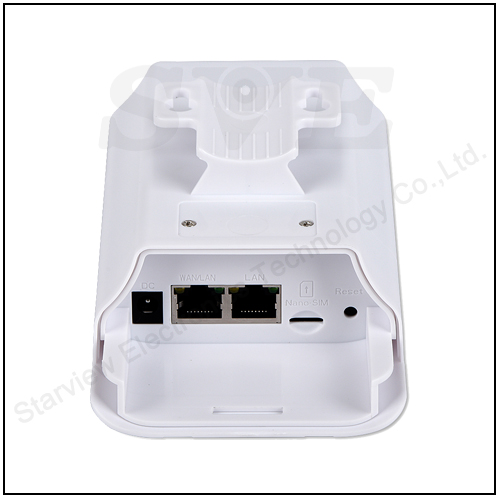

SR-580E also provides both an RJ45 port for Ethernet WAN.one Ethernet LAN RJ45 ports, one SIM card slot, and data gateway functionality for both Ethemet ports and Wifi.
Support remote management of equipment cloud platform, simple graphical interface, comvenient and quick use, let you understand the current state of euqipment anytime and anywheren widely used in the internet of things industry chain, such as smart frid, smart transportation, smart home, financen mobile POS terminal, supp;u chain automation, industrial automation, intelligent building, fire protection, public safety, environmental protection, meteorology, digital medical, remote sensing survery, space exploration, agriculture, forestry, water, coal mining, petrochemical, etc.

Product specifications
Product model SR-580E
SIM Card Nano-Sim Card
Ethernet prot 1*WAN, 1*LAN  10/100M adaptive
Power interface Input:100V-240V AC 50Hz/60Hz, output: DC12V/2A
Reskey Recovery factory settings for more than 6 seconds
LED status light Power lamp * 1, Wifi lamp * 1, 4G signal light * 2
Dimenstions 172*90*43mm
Weight 360g
Working environment Operation temperature:-40°C to 85°C storage temperature: -40°C to 85°C; humidity:5%~95%(No condenstation)
4G/3G/2G Wireless network technical Specifications
Module model Quectel EC200TEUHA
Frequency-point support FDD:B1/B3/B7/B8/B20/B28
  TDD:B38/B40/B41
  TDD:B38/B40/B41
  WCDMA: B1/B8
  GMS: B3/B8
Up and Down peak rate LTE FDD: Max 150Mbps(DL) / max 50Mbps (UL)
  LTE TDD: max 130Mbps(DL) / max 35Mbps (UL)
  WCDMA: max 384kbps (DL) / max 384kbps (UL)
  EDGE: max 296kbps (DL) / max 236.8kbps (UL)
  GPRS: max 107kbps (DL) / maximum 85.6kbps (UL)
Receiven sensitivity Meet the 3GPP standards
Maximum output power LTE FDD: 23dBm ± 2dB
  LTE TDD: 23dBm ± 2dB
  WCDMA: 24dBm + 1dB/-3dB
  GSM B5/8:+33 ± 2dBm(Power class4)
  GSM B2/3:+30 ± 2dBm(Power class1)
4Gantenna type Built-in high-gain PCB antenna
Antenna gain 5dBi
Wifi technical specification
Protocol standanrd IEEE 802.11a/b/g/n
Channel bandwidth 20MHz, 40MHz
Frequency 2.4 G
Peak Rate 802.11b:11Mbps
  802.11g:54Mbps
  802.11n:300Mbps
Commis sioning mode DSSS/CCK,OFDM
Receive sensitivity -85dBm in 802.11b
  -70dBm in 802.11g
  '-70dBm in 802.11n
Maximum emission power 18dBm in 802.11b
  17dBm in 802.11g
  16dBm in 802.11n
wifi anternna type Built in high-gain PCB antenna
Antenna agin 5dBi
Nunber of users Max.32 bits
Basic software function
Language Support Chines and English
IP protocol IPv4
WAN port Fixed ip/PPPoe dial-up / auto-acquisition
4G dial-up Automatic
LTE band Search mode Full-Band search
VPN L2TP, PPTP
NAT Support
Wifi AP mode, relay mode
Routing system Qos
Internet Watdog 7*24 hours

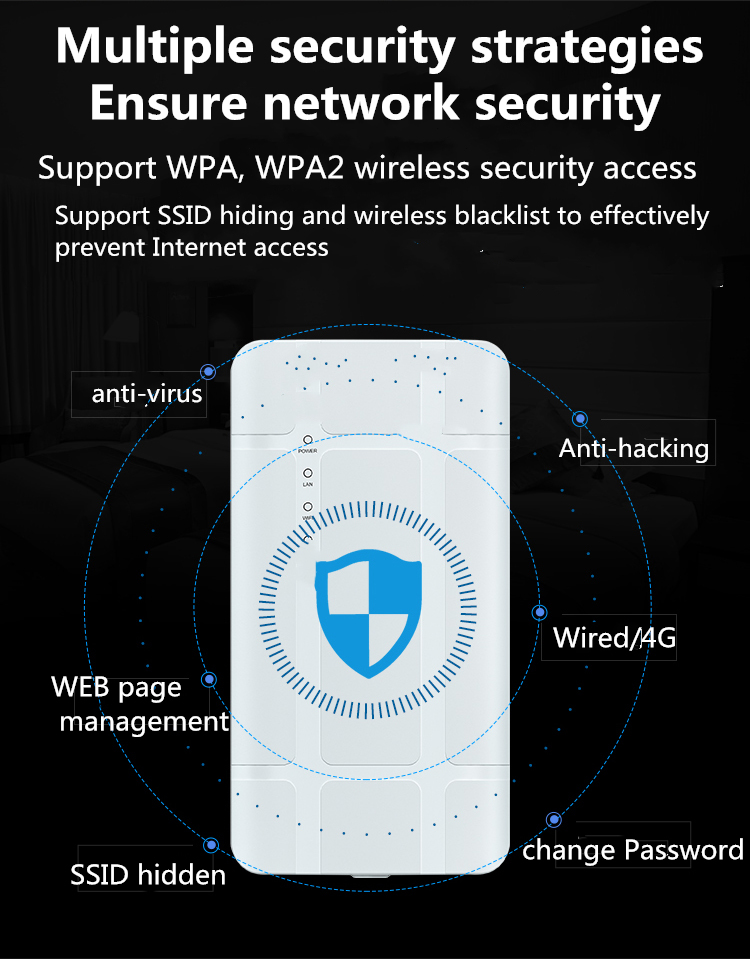

Firewall MAC blacklist, Port mapping, DMZ
Statistics LTE Network status, Device running status, DHCP customer list, Network connection status, firewall status
Maintenance Time synchronization settings, sutomatic resart, restore factory settings, restore/ backup configuration files, local upgrade
System Log Run log
Routing master chip Qualcomm QCA9531
RAM DDR2 512Mb
Flash SPI 128Mb
Protocol standard IEEE802.11b / 802.11g / 802.11n / 802.3 / 802.3u
Wireless rate 2.4G   300Mbps
Working frequency 2.4GHz
