4G Network WiFi Industrial Grade Qualcomm Outdoor Router
4G industrial grade Qualcomm Route
4G industrial grade Qualcomm Route
4G Full Netcom
300M bandwidth, smooth wireless

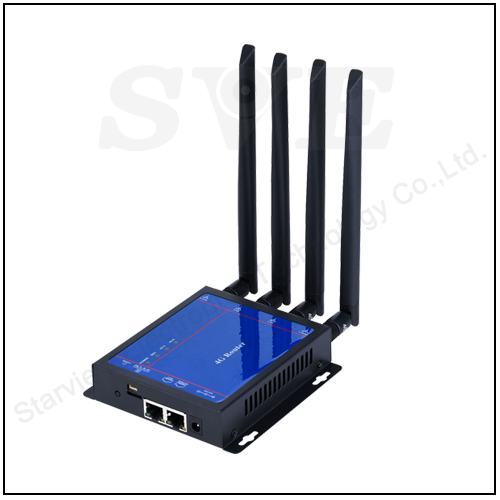

External omnidirectional 4G antenna, better signal and more stable Internet access
Support for CAT4
Card plug-in in-play, convenient and fast
Product Description

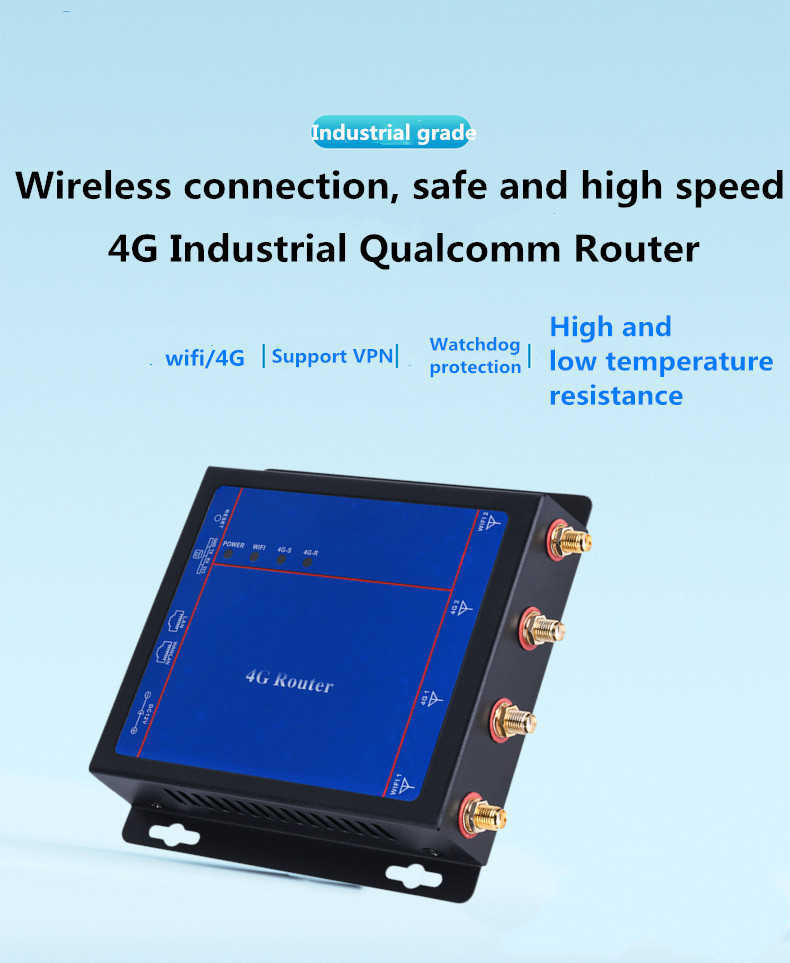

In the networked world of the Internet, the demand for intelligent communication will only become stronger and stronger, especially in the field of intelligent industrial control.SR-985E4G Industrial Router is the new 4G wireless VPN router for industry. This facility provides fast internet access with an explosive growth of a 4G cellular data network and a variety of wored high-speed broadband access services. With its security, stability and intelligence, thousands of devices are easily connected to provide high-speed data transmission and communication for the real sense of eauipment ifformatication.

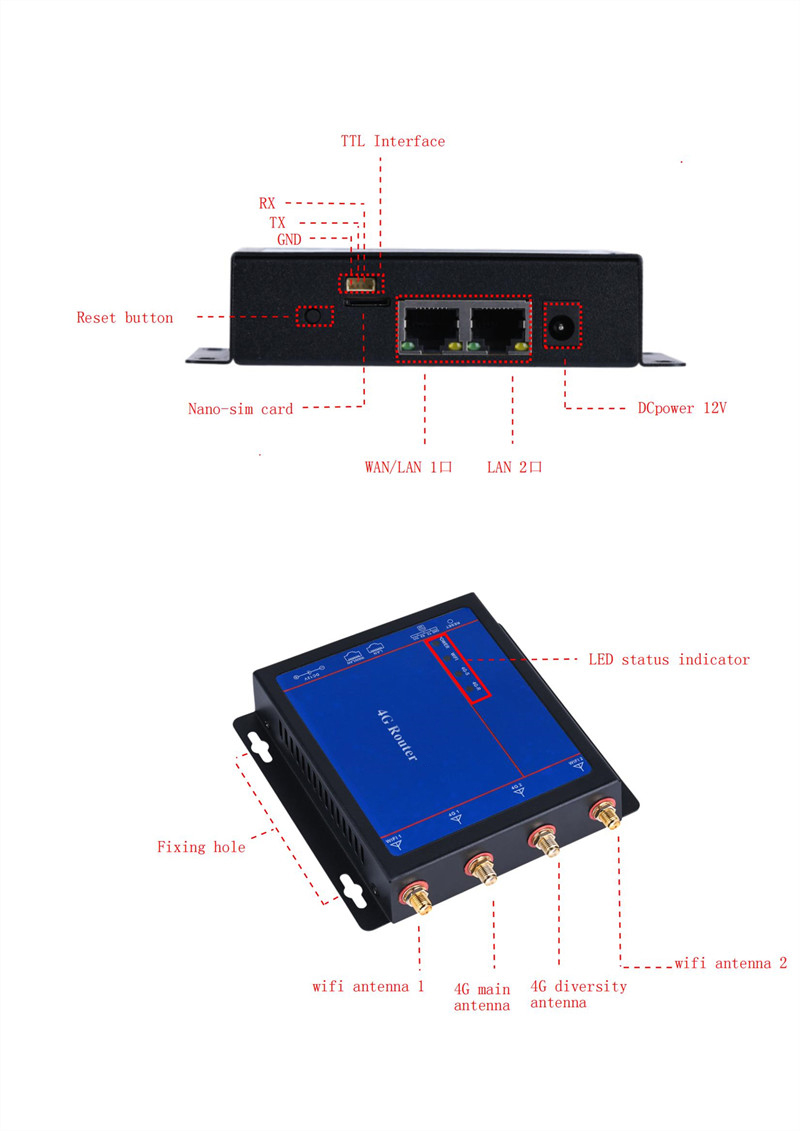

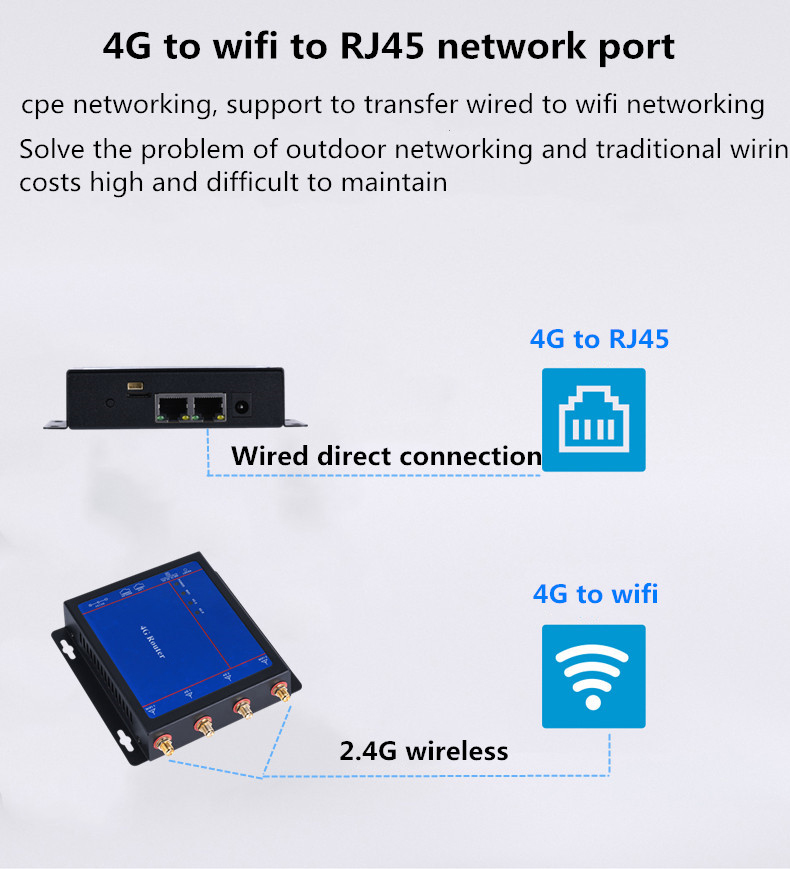

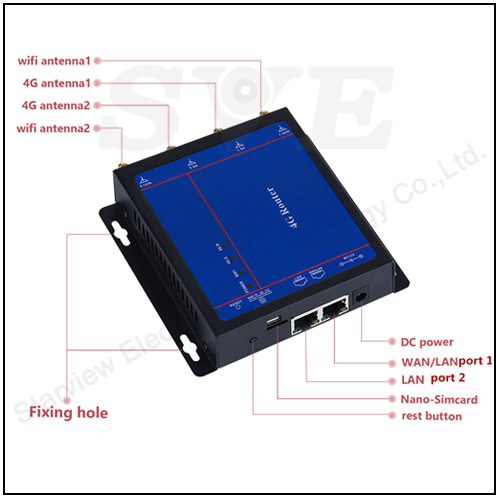

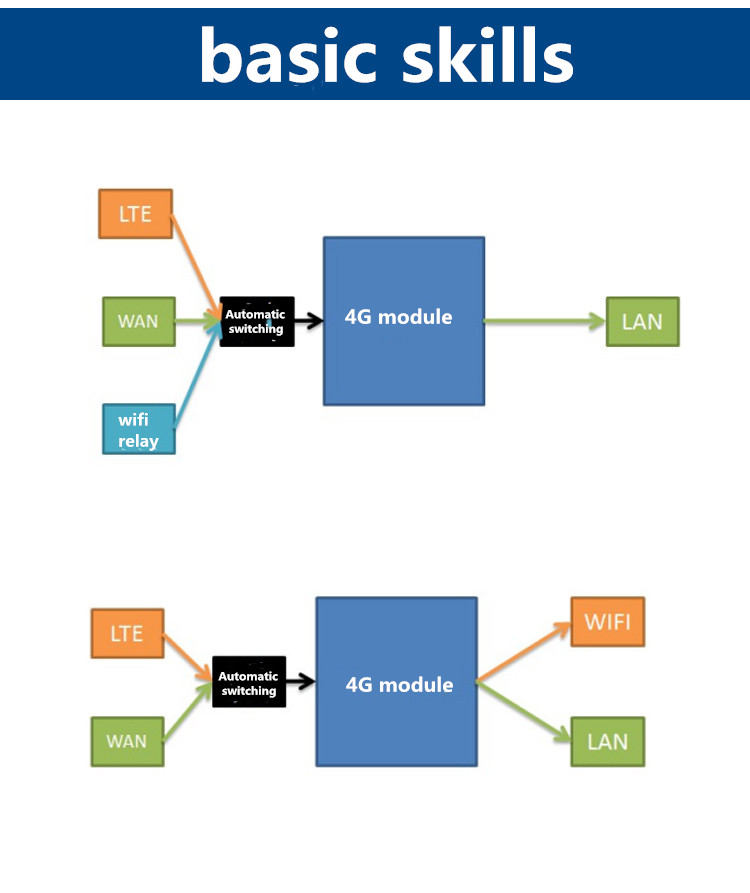

SR-985E4G also provides both an RJ45 port for Ethernet WAN.one Ethernet LAN RJ45 ports, one SIM card slot, and data gateway functionality for both Ethemet ports and Wifi.

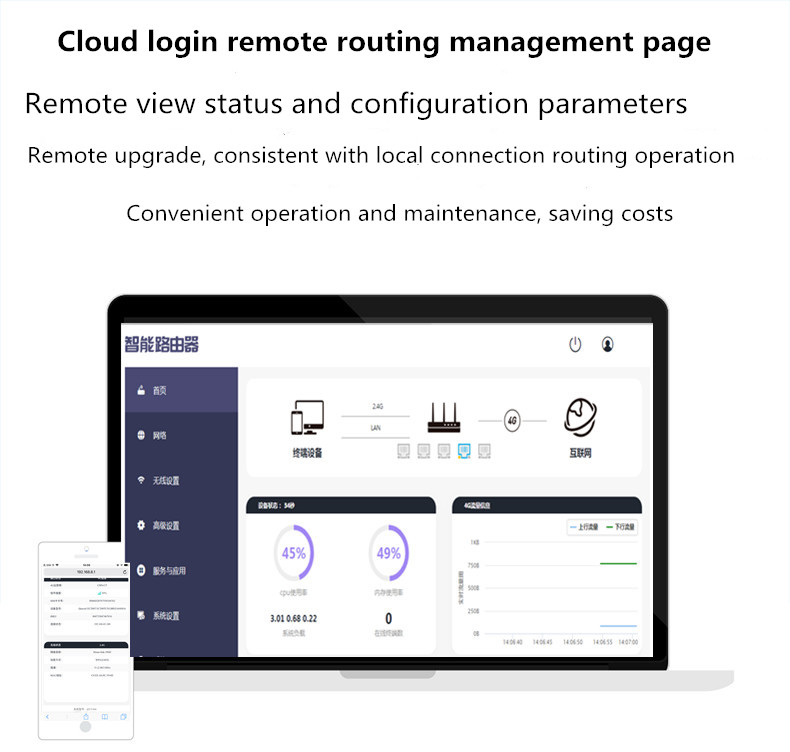

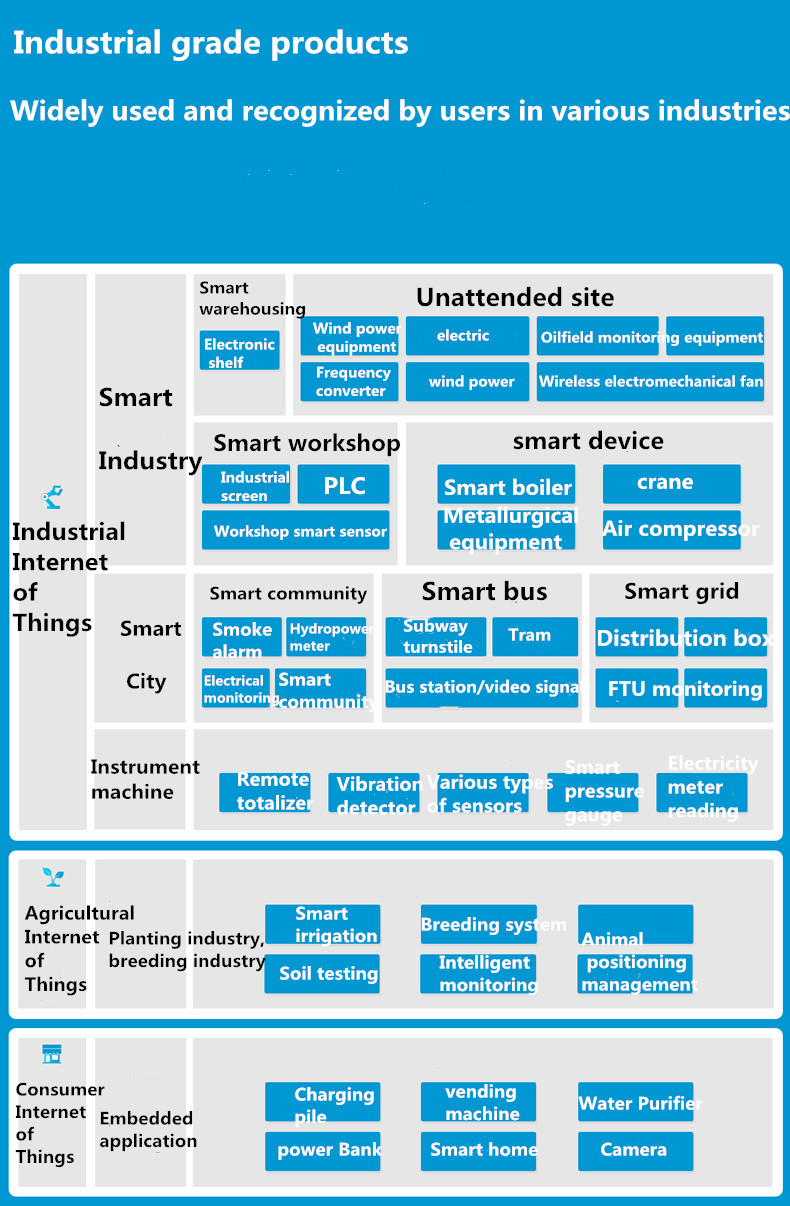

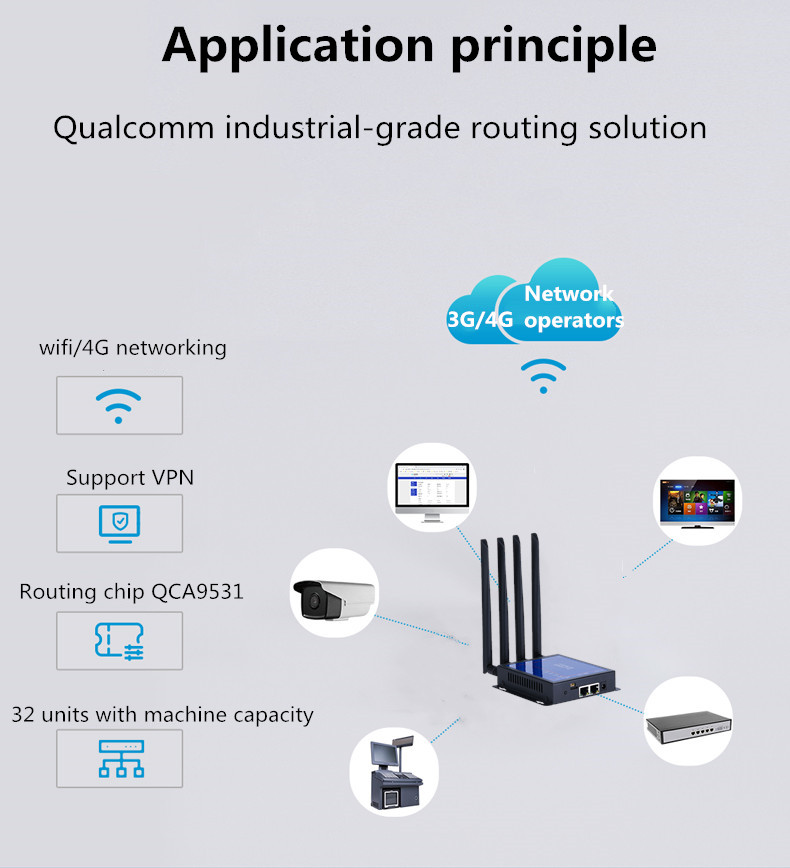

Support remote management of equipment cloud platform, simple graphical interface, comvenient and quick use, let you understand the current state of euqipment anytime and anywheren widely used in the internet of things industry chain, such as smart frid, smart transportation, smart home, financen mobile POS terminal, supp;u chain automation, industrial automation, intelligent building, fire protection, public safety, environmental protection, meteorology, digital medical, remote sensing survery, space exploration, agriculture, forestry, water, coal mining, petrochemical, etc.
4G industrial grade Qualcomm Route
4G Full Netcom
300M bandwidth, smooth wireless
External omnidirectional 4G antenna, better signal and more stable Internet access
Support for CAT4
Card plug-in in-play, convenient and fast
Product Description
In the networked world of the Internet, the demand for intelligent communication will only become stronger and stronger, especially in the field of intelligent industrial control.SR-985E4G Industrial Router is the new 4G wireless VPN router for industry. This facility provides fast internet access with an explosive growth of a 4G cellular data network and a variety of wored high-speed broadband access services. With its security, stability and intelligence, thousands of devices are easily connected to provide high-speed data transmission and communication for the real sense of eauipment ifformatication.
SR-985E4G also provides both an RJ45 port for Ethernet WAN.one Ethernet LAN RJ45 ports, one SIM card slot, and data gateway functionality for both Ethemet ports and Wifi.
Support remote management of equipment cloud platform, simple graphical interface, comvenient and quick use, let you understand the current state of euqipment anytime and anywheren widely used in the internet of things industry chain, such as smart frid, smart transportation, smart home, financen mobile POS terminal, supp;u chain automation, industrial automation, intelligent building, fire protection, public safety, environmental protection, meteorology, digital medical, remote sensing survery, space exploration, agriculture, forestry, water, coal mining, petrochemical, etc.
| Product specifications | |
| Product model | SR-985E |
| SIM Card | Nano-Sim Card |
| Ethernet prot | 1*WAN, 1*LAN 10/100M adaptive |
| Power interface | Input:100V-240V AC 50Hz/60Hz, output: DC12V/2A |
| Reskey | Recovery factory settings for more than 6 seconds |
| Basic software function | |
| Language Support | Chines and English |
| IP protocol | IPv4 |
| WAN port | Fixed ip/PPPoe dial-up / auto-acquisition |
| 4G dial-up | Automatic |
| LTE band Search mode | Full-Band search |
| VPN | L2TP, PPTP |
| NAT | Support |
| Wifi | AP mode, relay mode |
| Routing system | Qos |
| Internet Watdog | 7*24 hours |
| Firewall | MAC blacklist, Port mapping, DMZ |
| Statistics | LTE Network status, Device running status, DHCP customer list, Network connection status, firewall status |
| Maintenance | Time synchronization settings, sutomatic resart, restore factory settings, restore/ backup configuration files, local upgrade |
| System Log | Run log |
| Routing master chip | Qualcomm QCA9531 |
| RAM | DDR2 512Mb |
| Flash | SPI 128Mb |
| Protocol standard | IEEE802.11b / 802.11g / 802.11n / 802.3 / 802.3u |
| Wireless rate | 2.4G 300Mbps |
| Working frequency | 2.4GHz |

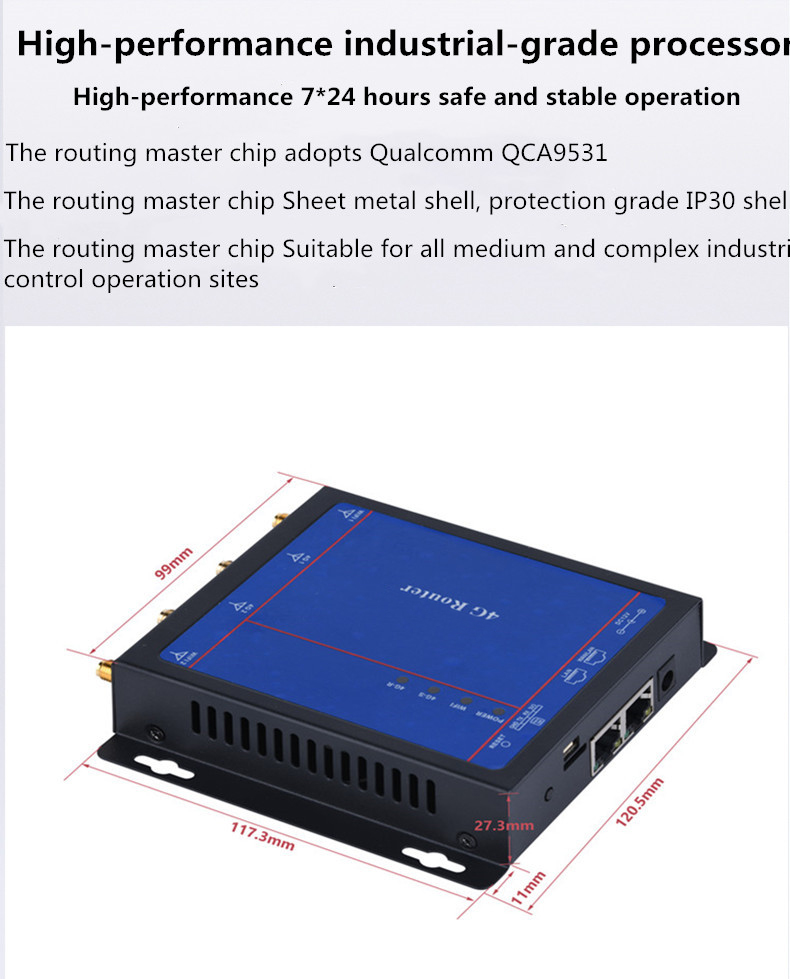

| Dimenstions | 120*117*27mm |
| Weight | 285g |
| Working environment | Operation temperature:-40°C to 85°C storage temperature: -40°C to 85°C; humidity:5%~95%(No condenstation) |
| 4G/3G/2G Wireless network technical Specifications | |
| Module model | Quectel EC200TEUHA |
| Frequency-point support | FDD:B1/B3/B7/B8/B20/B28 |
| TDD:B38/B40/B41 | |
| WCDMA: B1/B8 | |
| GMS: B3/B8 | |
| Up and Down peak rate | LTE FDD: Max 150Mbps(DL) / max 50Mbps (UL) |
| LTE TDD: max 130Mbps(DL) / max 35Mbps (UL) | |
| WCDMA: max 384kbps (DL) / max 384kbps (UL) | |
| EDGE: max 296kbps (DL) / max 236.8kbps (UL) | |
| GPRS: max 107kbps (DL) / maximum 85.6kbps (UL) | |
| Receiven sensitivity | Meet the 3GPP standards |
| Maximum output power | LTE FDD: 23dBm ± 2dB |
| LTE TDD: 23dBm ± 2dB | |
| WCDMA: 24dBm + 1dB/-3dB | |
| GSM B5/8:+33 ± 2dBm(Power class4) | |
| GSM B2/3:+30 ± 2dBm(Power class1) | |
| 4Gantenna type | External high gain detachable antenna |
| Antenna gain | 5dBi |
| Wifi technical specification | |
| Protocol standanrd | IEEE 802.11a/b/g/n |
| Channel bandwidth | 20MHz, 40MHz |
| Frequency | 2.4 G |
| Peak Rate | 802.11b:11Mbps |
| 802.11g:54Mbps | |
| 802.11n:300Mbps | |
| Commis sioning mode | DSSS/CCK,OFDM |
| Receive sensitivity | -85dBm in 802.11b |
| -70dBm in 802.11g | |
| -70dBm in 802.11n | |
| Maximum emission power | 18dBm in 802.11b |
| 17dBm in 802.11g | |
| 16dBm in 802.11n | |
| wifi anternna type | Removable antenna |
| Antenna agin | 5dBi |

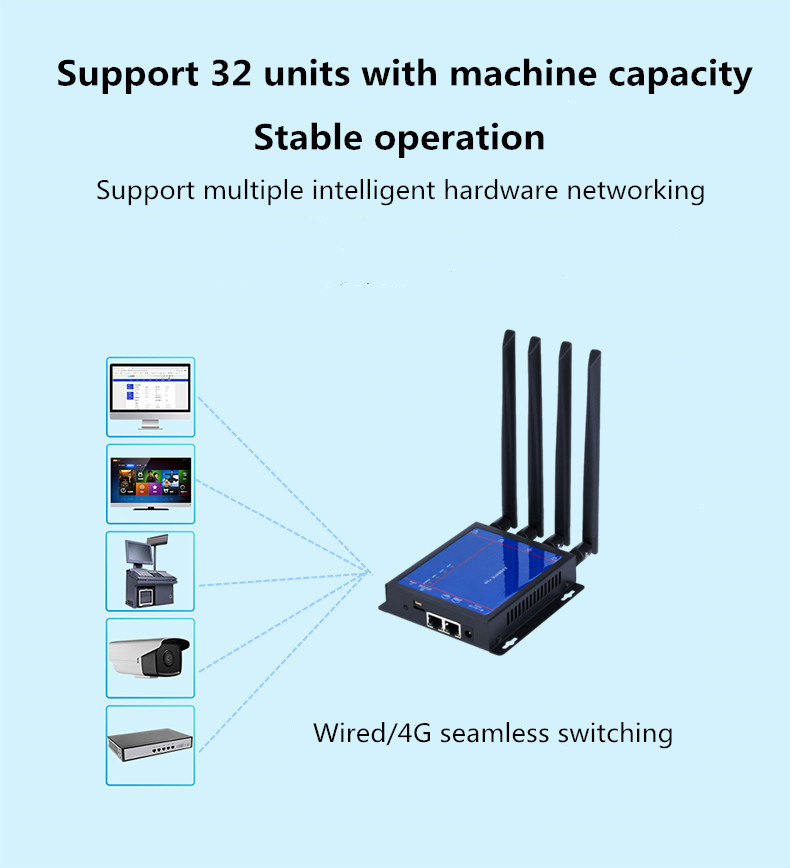

| Nunber of users | Max.32 bits |
