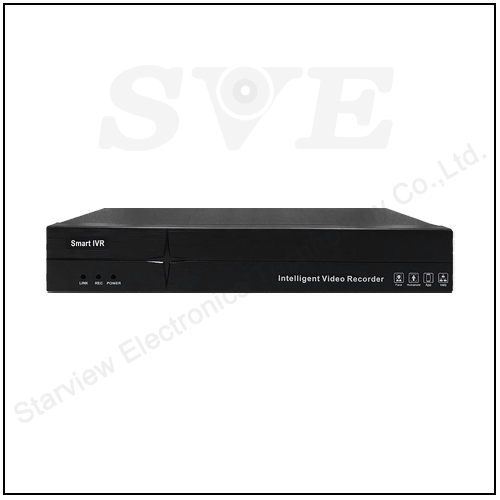

H. 265+ 16CH Ivr 32CH 4K Intelligent Video Recorder

1.h.265+/H.265/H.264 triple stream decoding, embedded Linux operating system
2.Support 4K IPC input, IPC centralized management, including IPC parameter configuration, information export and import, real-time information acquisition and upgrade, etc.
3.Support our Smart IPC: Humanoid Detection,target count, absent alarm, retrograde motion detection, E-bike detection, area intrusion.
4.Support synchronous recording, remote monitoring, backup
5.Support preview image and playback image 12 times electronic magnification
6.Standard ONVIF, SLINK, RTSP ,GB28181protocol
7.Support DDNS, EMAIL, UPNP, P2P and other functions
8.Support WEB, mobile phone monitoring, client, VMS monitoring
9.Supports disk grouping quotas and disk group storage modes
10.Support channel grouping, preview tour
11.Supports maximum 4CH 1080P recording synchronous playback and multi-channel synchronous playback
12.Support double password authentication
13.Support network monitoring: network traffic, network delay packet loss test, network packet capture backup
14.Support current bandwidth, stream information,support multiple language

Model No. NVR-H2016
Operating System Embedded Linux
Bandwidth 80M
Video Format H.265+/H.265 /H.264
Record resolution 4K/5MP/3MP/1080P/D1/VGA
Smart Function Target count,human detect, e-fence, line-crossing, retrograde alarm, absent alarm...etec
Recording method Manual/fixed time/alarm recording
Playback 1CH 4K/4Ch1080P/16CH sub-code
Playback mode Regular playback, event playback,external file playback
Backup mode USB protable HDD, memory
Video input Support 128 CH IPC (8MP/D1+64 CH preview+16CH playback)
HDD capacity Max 8T
Storage Local HDD,network HDD IPSAN
Backup mode USB protable HDD, memory
External Interface
Audio input 1 pcs RCA port
Audio output 1 pcs RCA port
Network 1 pcs,RJ45 1000M ethernet port
POE Port 16CH PoE Netowrk Port
USB port 2 pcs USB2.0
E-sata Support
Alarm input 4 CH
Alarm output 4 CH
Power Supply ATX110-220V 400W 50-60Hz
Power Consumption <=30W (without HDD)
Dimension 431.5mm×600mm×177.5mm, 440X432X90mm
Weight/pcs Net weight: 1.6Kg; Gross Weight: 1.72Kg (without HDD)
Outside Carton 8 pcs/CTN. 760mm×370mm×410mm; Weight: 13.8KG
