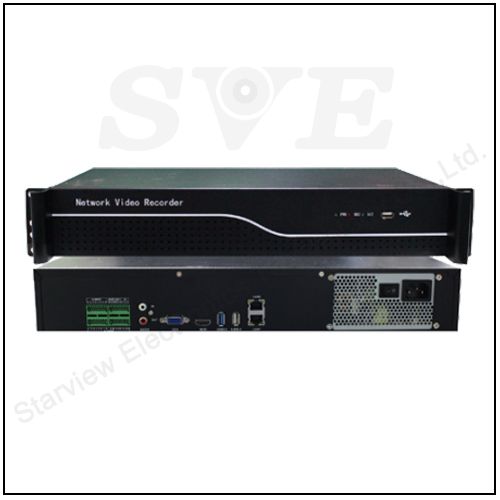

36 Channel 4SATA HDD Interface Network Video Recorder

  1. High definition multi-function NVR with rich interface and powerful features. HD IPC,provide preview,recording, forward and so on functions.
  2. Support mobile phone monitoring, traversal service, achieve APP seconds connection for preview and remote recording playback, support various network modes: IPC - NVR - Seetong Cloud - Seetong Client, IPC - NVR - Seetong Client, IPC - NVR - Seetong Cloud - Seetong APP
Model No. SVN-NST836-E4
System Structure Embedded LINUX design, pure hardware decode, watchdog, hard disk storage, HDMI HD display, IP network video access.
Main processor Hi3796MV200;
Video Input Access to HD IPC, support each channel double stream access, support automatic search, video, preview and without debugging
Access bandwidth 256Mbps;
Video Output 1channel HDMI output, support 4K (3840×2160)/30Hz, 1920×1080, 1440×900, 1366×768, 1280×1024, 1280×800, 1024×768 resolution output show;
1 channel VGA output,homology with HDMI,support 1920×1080, 1440×900, 1366×768, 1280×1024, 1280×800, 1024×768 resolution output show;
Support Seetong client preview, APP preview and seconds connection
1/2/4/6/8/9/10/16/25/36 pictures real time preview;
Video recording resolution Support 720P/960P/1080P/3MP/4MP/5MP/4K;
Video Capacity Support H.265+/H.265/H.264 decoding;
NVR local recording playback support 8*2MPor 1*4K; Seetong client recording playback support 4 channels.
Audio 1*audio input(2.Vp-p level, 1KΩ impedance), support connection pick-up; 1*audio output(linear level; 600Ω impedance), support connect power amplifier speakers; support remote Seetong client two-way voice intercom function, using G.711encoding and decoding standard;
Storage 4*SATA hard disk interface, support 8TB capacity;
Support schedule record, motion detection,IO alarm linkage record;
Support external USB storage devices (such as ordinary U disk, mobile hard disk) backup;
User Local maximum support for 38 users;
Network Interface 1* RJ45 network interfaces; support 10/100/1000M self-adaption; reserved 1* RJ45 network interfaces; support 10/100M self-adaption; support TCP/IP, IPv4, DHCP, NTP, RTSP, P2P, SMTP, GB28181 and so on protocols;
Peripheral Interface 1*RS485 interface,support PELCO agreement of rocker PTZ control keyboard; 1*RS232 serial interface, support transparent transmission channel; 1*USB3.0,2*USB2.0, support for the mouse, USB upgrade, import and export
Alarm interface 16 channel switch input, support alarm input; 4 channel relay output, support siren/alarm;
LDE 1* power, 1*record, 1*network indicator light;
Business Functions Support preview/recording/forward/remote service, support alarm linkage, support Seetong client remote control software; support seetong cloud service;
Working Environment Temperature -10ºC~+55ºC, Humidity 10%~90% RH
Size and Weight 1.5U chassis,363×439×70mm, the host weighs about 4052g
others AC 100~240V(50/60Hz) ATX power input, host power consumption<8W (No disk); Support lightning protection, anti-static.
