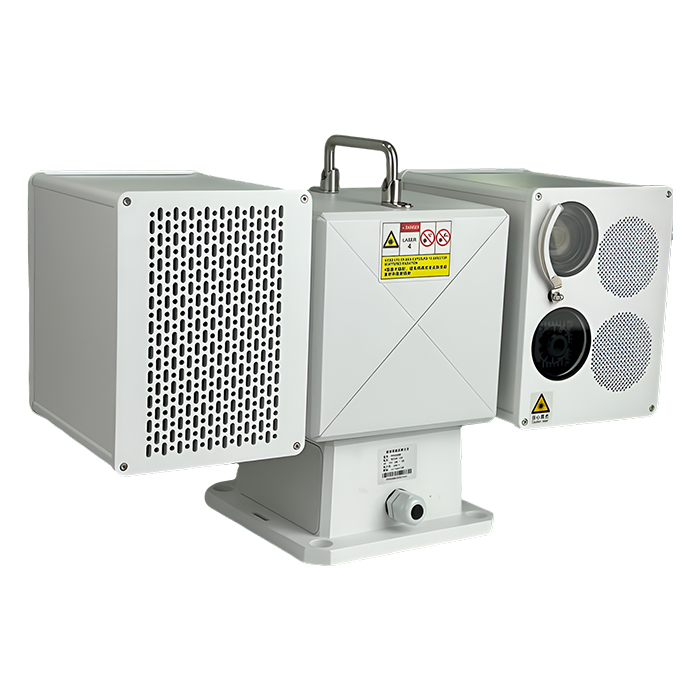

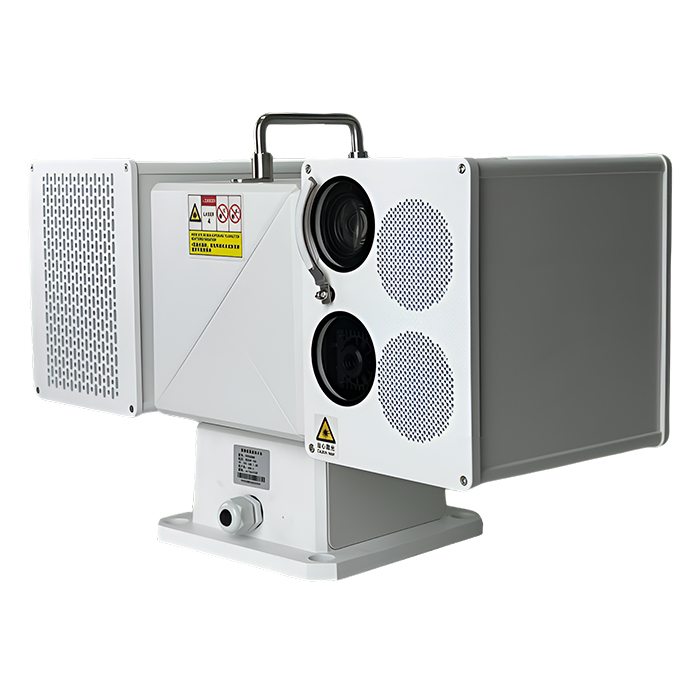

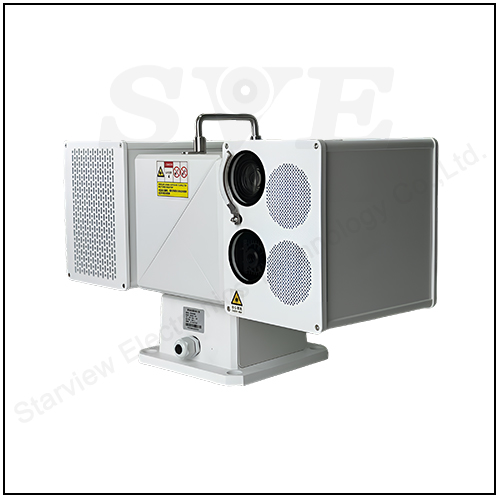

Laser 800m Night Vision 1080P 30X Zoom Multi-Modal Deterrence Smart Bird Defense PTZ Camera System
Key Features
The Bird Dispersal Laser-Acoustic Multi-function PTZ Platform integrates specialized wavelength lasers, directional acoustic waves, and ultrasonic technology into an AI-driven avian deterrent system. Engineered for extended operational range, it enables real-time long-distance control through remote management systems without interfering with adjacent equipment. Featuring IP66-rated environmental protection, this solution meets year-round outdoor deployment requirements for critical applications including airports, orchards, farmlands, warehouses, and power transmission facilities.
Technical parameters
- 2MP HD visible-light camera with deep learning algorithms for precise bird flock identification;
- Automatically activates laser high-intensity acoustic waves, and ultrasonic emitters sweeping within preset angles upon detection;
- 532nm wavelength (most visible to birds) with customizable power settings (safe for humans and equipment);
- Horizontal 360° continuous rotation + vertical -90° to +90°tilt for sweeping large farms, airports, or power grids;
- Adjustable parameters: laser sweep speed/angle, PTZ movement range, operation schedules;
- Remote management via web or NVR for real-time monitoring;
- IP56-rated against dust/water; lightning/surge/EMI protection; self-cleaning glass window.
- .Stores bird activity images locally or on cloud servers for behavior analysis.
| Model | SV-900BMF350405 |
| Camera function | |
| Image sensor | 1/2.8" Progressive Scan CMOS |
| Effective Pixels | 2MP |
| Minimum Illumination | Color: 0.005 Lux @(F1.67, AGC ON); B&W: 0.001 Lux @(F1.67, AGC ON) |
The Bird Dispersal Laser-Acoustic Multi-function PTZ Platform integrates specialized wavelength lasers, directional acoustic waves, and ultrasonic technology into an AI-driven avian deterrent system. Engineered for extended operational range, it enables real-time long-distance control through remote management systems without interfering with adjacent equipment. Featuring IP66-rated environmental protection, this solution meets year-round outdoor deployment requirements for critical applications including airports, orchards, farmlands, warehouses, and power transmission facilities.
Technical parameters
| Model | SV-900BMF350405 | |
| Camera function | ||
| Image sensor | 1/2.8" Progressive Scan CMOS | |
| Effective Pixels | 2MP | |
| Minimum Illumination | Color: 0.005 Lux @(F1.67, AGC ON); B&W: 0.001 Lux @(F1.67, AGC ON) | |
| Main stream |
50Hz: 25fps (1920×1080, 1280×960, 1280×720); 60Hz: 30fps (1920×1080, 1280×960, 1280×720) |
|
| Focal length | 5.1-153mm, 30x optical zoom; 16X Digital zoom | |
| Aperture | F1.67-F3.67 | |
| Horizontal field of view | 62.26° - 2.39° (wide - tele) | |
| Wavelengthe lasers | ||
| Laser beam Light | Green | |
| Wavelength | 520±5nm | |
| Laser type | Linear Line Pattern(10mm@100mmdistance) | |
| Effective Deterrence Range | ≥800m(nigh)/≥100m(day) | |
| Laser class | 3B(IEC60825-1:2014) | |
| Optical Output Power | ≥1500mW | |
| Multi-Modal Deterrence | ||
| Type | Acoustic waves | Ultrasonic modulation |
| Power consumption | 65W | 2X5W/H |
| Acoustic Output Range | 650Hz~6KHz | 1.5K-25KHz |
| Sound Pressure | 138dB/1m | 120dB/1m |
| Operating Modes | Multi-source Audio Library/Cyclic Playback | Frequency Modulation / Fixed-Frequency Operation |
| Pan&Tilt Features | ||
| Rotation range | Horizontal: 360° continuous, vertical: -90 to +90° | |
| Rotation speed | Horizontal: 0.1~30°/S, Vertical: 0.1~30°/S | |
| Preset position | 255 | |
| Breathable vent | Integrated 2 waterproof breathable vents to minimize fogging and condensation | |
| Communication | VISCA\Pelco D RS485, Ethernet RJ45,RS422 | |
| Other | Cruise scan\ Power-off Position Memory\ Intelligent Ready Position\ Software OTA Update\ query angle return function\ Status Display Support | |
| Network | ||
| Network Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, SMTP, SNMP, IPv6 | |
| Access Protocol | ONVIF(PROFILE S,PROFILE G) | |
| Storage Function | Support micro SD / SDHC / SDXC card (256g) offline local storage, NAS (NFS, SMB / CIFS support) | |
| Smart | ||
| Automatic Bird Flock Recognition | Identifies avian targets with real-time motion detection, captures optimal images of flying birds, and outputs high-definition target snapshots. | |
| Intelligent Algorithm | Embedded deep learning engine trained on massive annotated datasets (images/videos), increasing target recognition rate by up to 95% under complex backgrounds | |
| Interface | ||
| Ethernet Port | RJ4510/100Base-T( IEEE 802.3) | |
| Alarm I/O Terminal | One line Input/ one line Output( IEC 62676-4) | |
| External RS-485 Interface | One line(ISO/IEC 8482:1993 ) | |
| Grounding Terminal | One line(IEC 60364-5-54) | |
| General | ||
| Power supply | DC24V/6.0A | |
| Power consumption | ≥90W | |
| Working Temperature | -30ºC~60ºC | |
| Working humidity | 0~90%RH | |
| EMC level | IP56, Power 4000V, Surge and Spike Protection | |

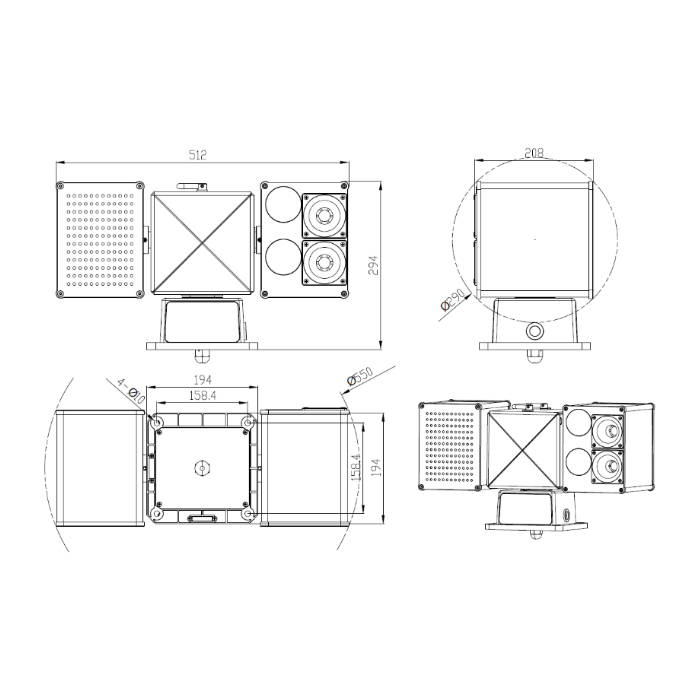

| Dimensions | L512mm×W208mm×H294mm | |
| Product weight | 13.6kg | |
