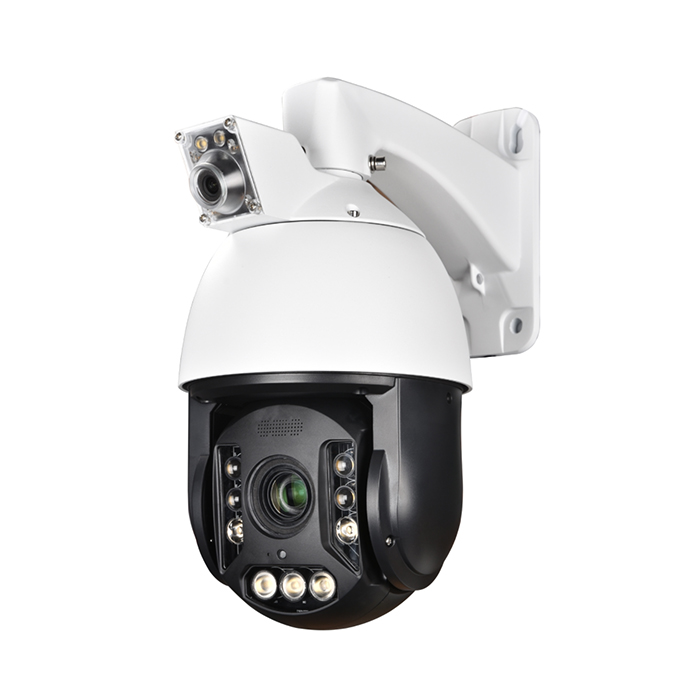

5MP*2 20X Zoom Smart Linkage Multi-Tasking Poe High Speed PTZ Camera
Product Description
- Intelligent analysis +Smart Linkage+ auto tracking
- 1 device, 1 Cable, 2 images, 5MP*2=10MP
- Solution: 2 X SigmaStar377+GC4653(Starlight low illumination)
- Full Color Night Vision
- Fixed lens camera: 4mm/F1.0; Zoom camera: 4.7-94mm (20X optical zoom)
- Rotation speed: 240°/S (High speed dome)
- Built-in Microphone +Speaker Two-way audio
- Mobile APP for free
Humanoid Recognition intrusion detection based on AI intelligent analysis.
Warning line, warning area linkage trigger tracking and zooming
Fixed-focus cameras for guard position monitoring, 20X zoom PTZ camera Magnified image to detect target details for global detail monitoring and 24h cruise/ scan.
Support auto tracking function.
Precision motor drive, professional grade subdivision circuit, support high precision and smooth motion positioning
IP66 waterproof
Key Features
| Model | |
| Model No. | SV720S-TAJF285D |
| Camera | |
| Image Sensor | 1/2.8" CMOS |
| Minimum Illumination | Color: 0.001Lux, B/W: 0.001Lux,0 Lux with IR (Starlight illumination) |
| 3D NDR | Support |
| WDR | Support |
| Electronic Shutter | AUTO |
| Day Night Mode | AUTO ICR Color to B/W |
| Fixed lens camera | 4mm/F1.0 |
| Zoom cam Focal Length | 20X Optical zoom, 4.7- 94mm |
| Zoom Speed | Approx.4s (Optical Wide ~ Tele) |
| Field of view | 70° |
| PTZ Angle of View | 52°-2.9° (Wide-Tele) |
| Resolution | 2560(H)x2048(V) |
| Main Stream | 2592*1944@25fps, 2500*1600@25fps, 2048x1536@25 fps |
| Sub Stream | D1@30fps |
| Video Compression | H.265+/H.265/ H.264 |
| Network protocol | HTTP, TCP/IP, IPv4, DHCP, NTP, RTSP, ONVIF, P2P, PPTP |
| Interface protocol | ONVIF |
| APP | AC18Pro / Video-link |
| PTZ Control | |
| Warm Light Distance | 100M |
| Horizontal Range | 0°~360° continuously |
| Vertical Range | -5°~90° |
| Horizontal Speed | 0.05°~240°/s |
| Vertical Speed | 0.05°~200°/s |
| Max Speed | 240°/S |
| Preset | 256 |
| Patrol scan | Support |
| L/R Scan | 1pc |
| Horizontal Scan | 1pc |
| Power-off memory | Support |
| PARK Action | Watch position/ Area Scan /Horizontal 360°scan/ Cruise |
| Watch position | Support |
| General | |
| Power | DC12V/5A |
| Consumption | <35W |
| Mounting Wall | mounting or lifting |
| Work environment | temperature: -20~60°C;humidity<90% |
| Protection level | IP66 waterproof,6000V lightning protection |
| Packaging Information | |
| Single package size | 24*24*42.5m |
| 4 package size | 49*49*46cm |
| Single gross weight | 3.8KG |
| 4 package gross weight | 16KG |
