3MP Ahd/Tvi/Cvi/CVBS Temperature and Humidity Sensing Camera

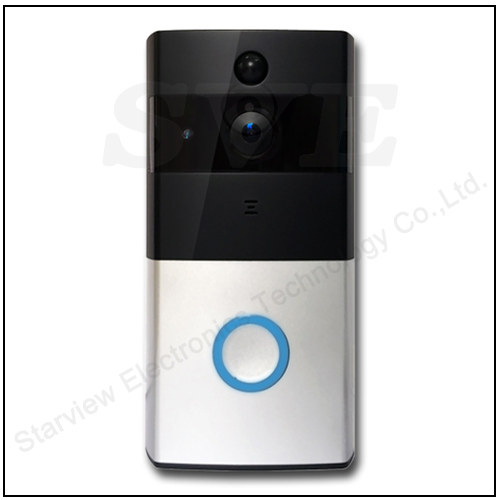

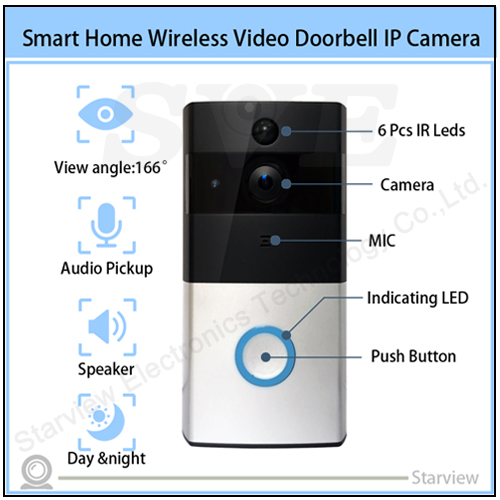

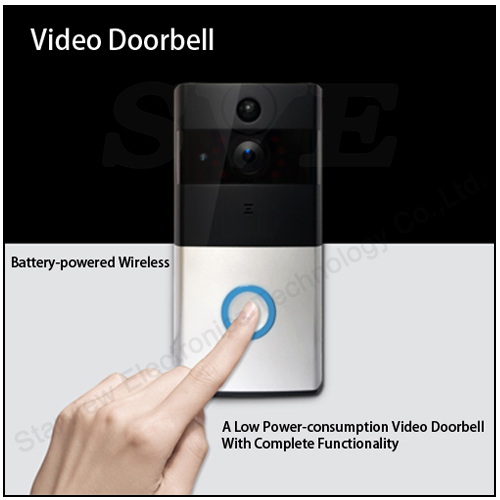

  • Wireless battery powered smart doorbell camera
  • Low power consumption, 6~8 month's endurance with 2 units of 18650 battery
  • HD 720P image quality, support night vision, camera view angle covers 166°
  • PIR motion sensor with 120° detection angle, accurate motion detection
  • Support Wi-Fi, Free P2P cloud service, push alarm to mobile via APP.
  • Support 2-way audio communication, answer your door wherever you are.

Model NO.  SV-DB700
Video Sensor 1/4 CMOS OV9732
ISP Hisilicon Hi3518E
Resolution 1 mega-pixels
Frame rate 25fps
Resolution 1280×720px
Lens 166° wide-angle
Night vision 6pcs infra-red LED lights, IR range: 6M
Audio Type 2-way audio with noise-cancellation
Hardware One microphone and one speaker
Network Wi-Fi (2.4GHz) IEEE 802.11 b/g/n
App Download iOS in App Store, Android in Google Play
Name ToSee
Device Wakeup Within 600ms
Notification Push notification within 1 second
Others Power Battery or hardwire power supply(8-24 VAC)
Battery 2 × standard 18650 battery
Power Consumption Standby mode: 200uA
Working mode: 170mA
Temperature -20~55 °C
Humidity 10-95% RH
Size 75 x 40 x 143mm (L×W×H)
Weight N.W: 300g  G.W.: 600g (note: for real products )
