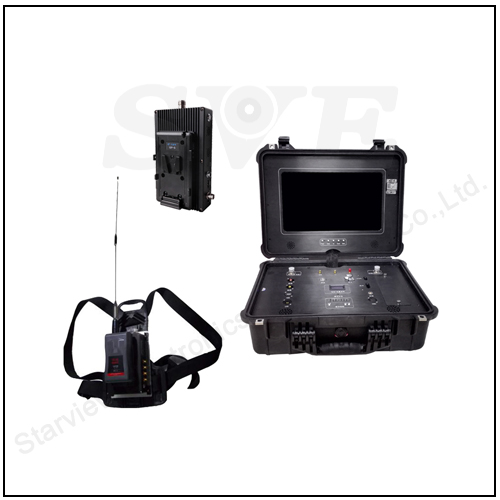

COFDM HDMI Wireless Transmitter

  • Easy to carry It has strong anti-interference ability and non line of sight diffraction ability
  • Low delay ≤200ms
  • The system adopts H.264 digital video coding standardClear picture to HD 1080p effect
  • Use COFDM(Coded Orthogonal Frequency Division Multiplexing:Coded orthogonal frequency division multiplexing)
  • Diversity dual antenna reception, so that the real-time image clearer and smoother

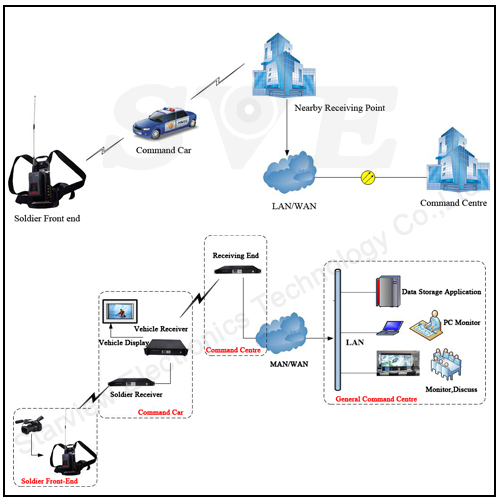

  • Applicable to the scene of the scene to monitor the car and other places. The volumesmall may do to camouflage equipment forensics, air operations, UAV image transmission wireless image transmission.

Model SV-CF510A-P
Working frequency 300MHz~2400MHz,Frequency customization
RF power 1-5W adjustable
Channel bandwidth 2/3/4/5/6/7/8MHz adjustable
FEC 1/2,2/3,3/4,5/6,7/8
Protection interval 1/32,1/16,1/8,1/4
 Stream  2Mbps~12Mbps
 Time delay  ≤200ms
Compressed format H.264
Transmission distance ground-to-air > 70 km,Sea surface > 30 km,Urban area >5 km,A suburb > 9 km
Audio interface HDMI,SDI,CVBS
Data interface Downlink transparent transmission,Baud rate:115200bps
Image HD1080P,1080I,720P,480P,SD
Image frame 24,50,60/S,Compatible with other frame rates
Power DC14.4V,SONY V
Size specification 210*131*55,No battery included
Weight 1.6kg,No battery included
Portable receiver
Working frequency 300MHz~860MHz,Frequency customization
Channel bandwidth 2/3/4/5/6/7/8MHz adjustable
Modulation technique COFDM
Sensitivity 2MHz:-103dBm;2.5MHz:-102dBm;4MHz:-100dBm;8MHz:-97dBm
Receiving technology Spatial diversity technique
Time delay 200ms
Receiving polarization Vertical polarization, dual antenna reception
Compressed format H.264
Image HD1080P,Downward compatibility1080I,720P,480P,SD
Image frame 24,50,60/S,Compatible with other frame rates
Storage hard disk 1T
Frame 1 picture
Display Size Maximum 15.6 inches (customized according to customer requirements)
3G/4G/GPSLocation Optional
Video Output 1 CH HDM,1 CH AV, 1CH RJ45,2 CH USB
Power DC12V,Special charger
Battery endurance More than 4 hours
Size specification 450*370*184mm(L*W*H)
weight 10Kg
Specific interfaces are subject to customer requirements
